Oberon® Wi-Tile® Ceiling Enclosures

Oberon® Wi-Tile® Ceiling Enclosures 1047; Locking Suspended Ceiling Tile Access Point Enclosures – Economical, locking, suspended ceiling Wi-Tile enclosure mounts and secures Wi-Fi APs flush to the ceiling. This metal enclosure replaces a standard ceiling tile, and it's larger back-box is suitable for larger APs and antennas. APs are mounted in the door, or inside the enclosure in models with the ABS or frosted polycarbonate plastic dome. The interchangeable door simplifies AP and antenna moves, adds, and changes.

Model 1047 is recommended for new installations to accommodate larger 6GHz-capable Wi-Fi 6E and 7 APs.

Three styles are available to match the ceiling grid type and size:

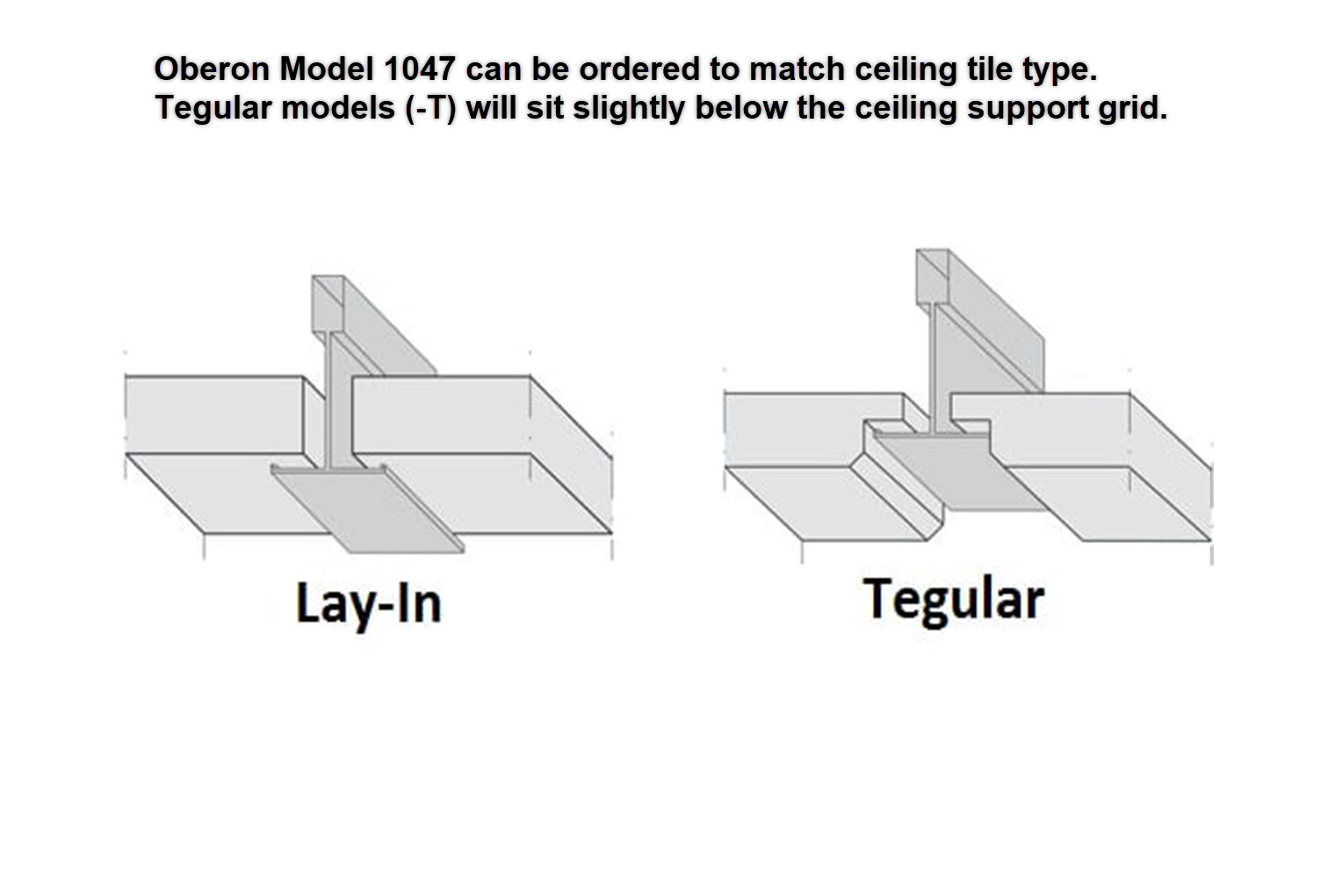

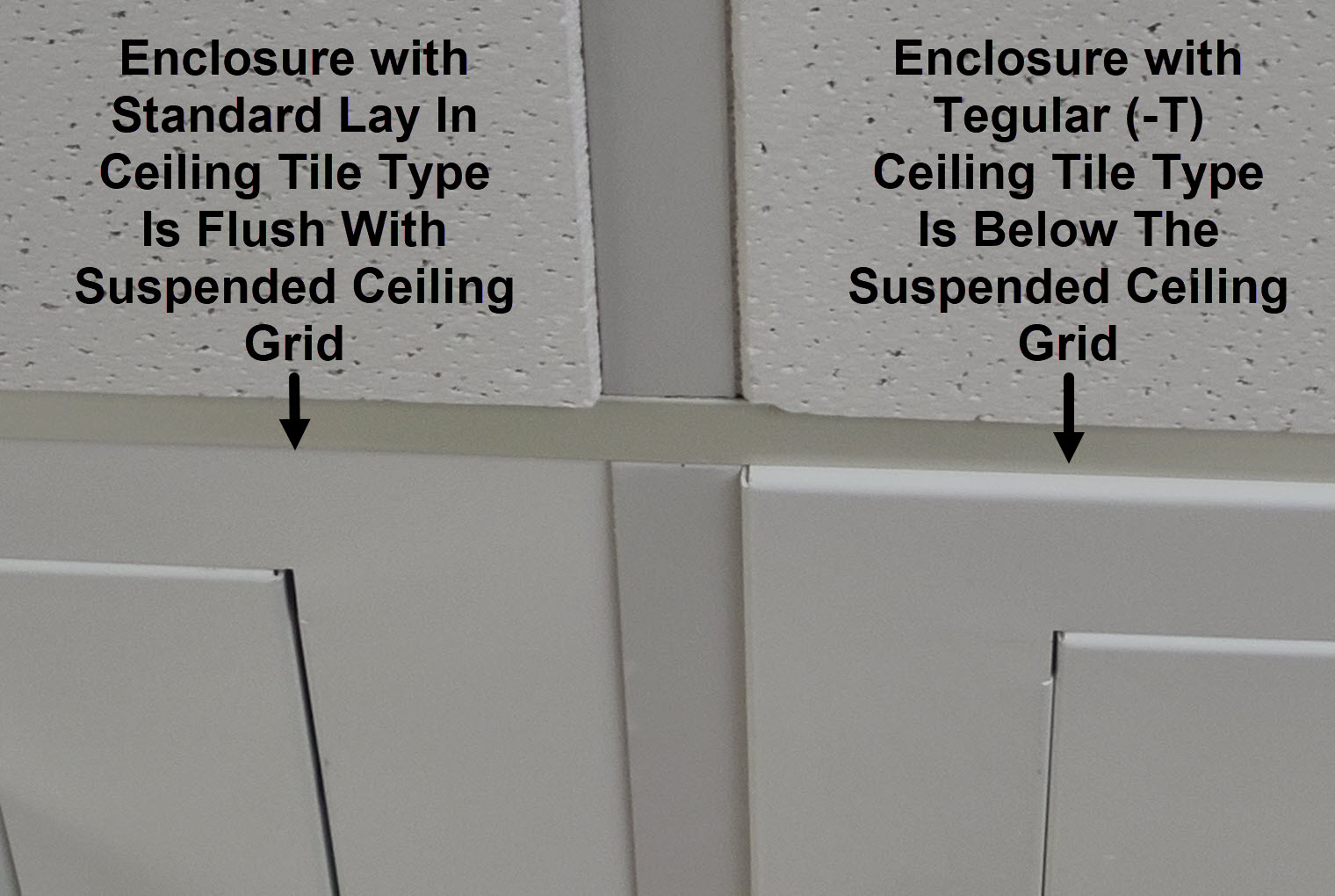

• 1047-XXXX: Lay-in flange for standard flush grid ceilings

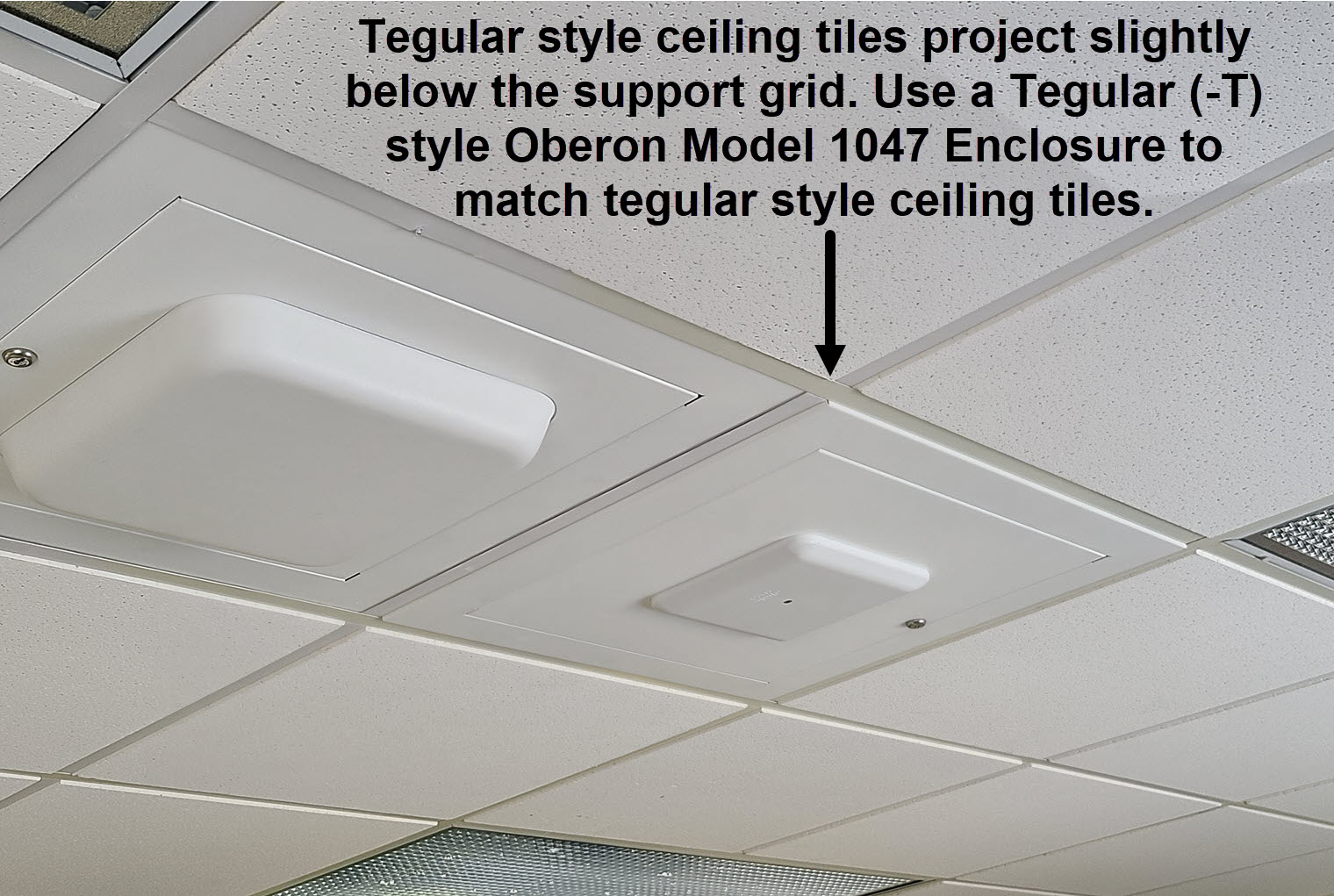

• 1047-XXXX-T: Tegular flange for recessed grid ceilings
• 1047-XXXX-600MM: 600mm flange for European metric ceiling grids

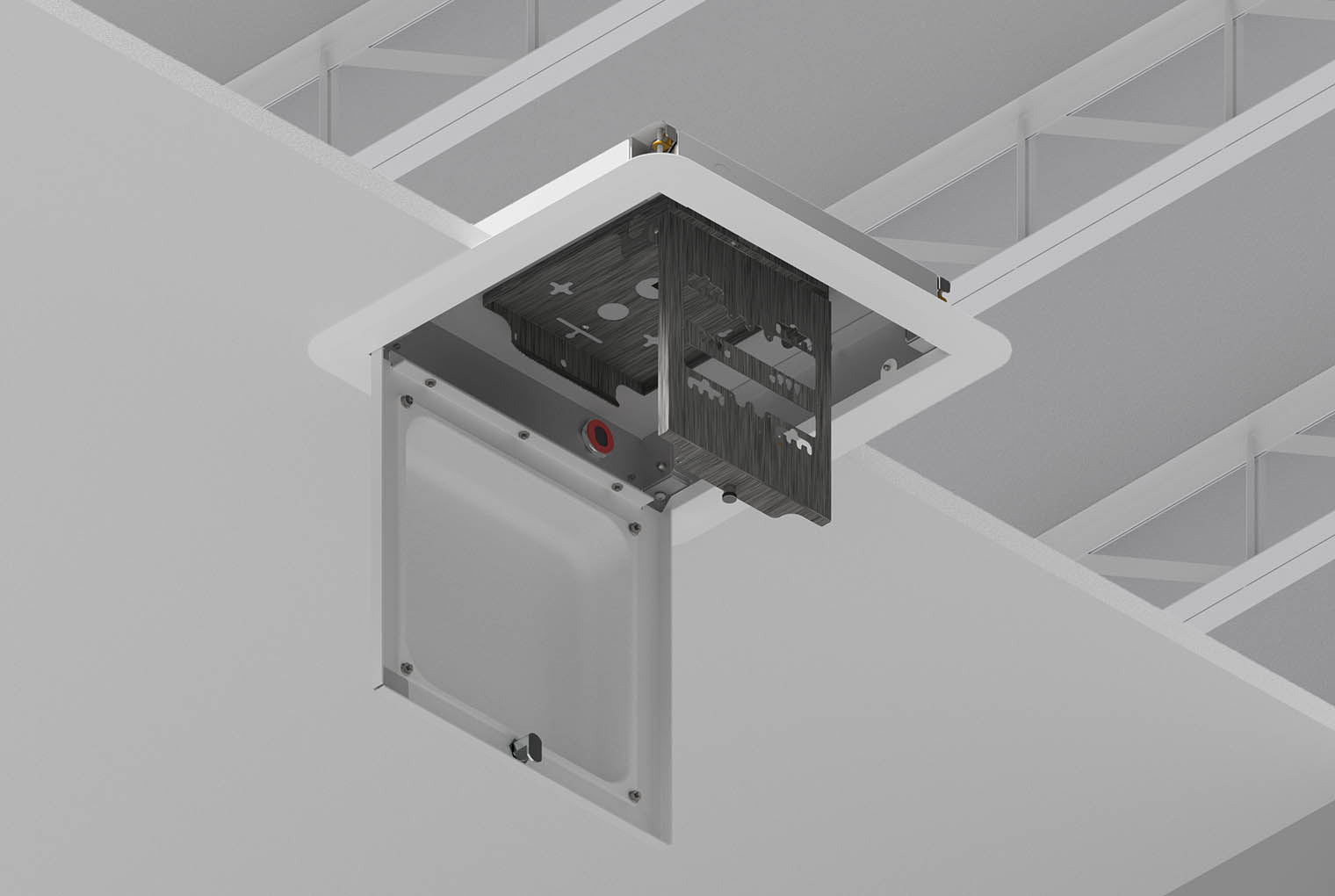

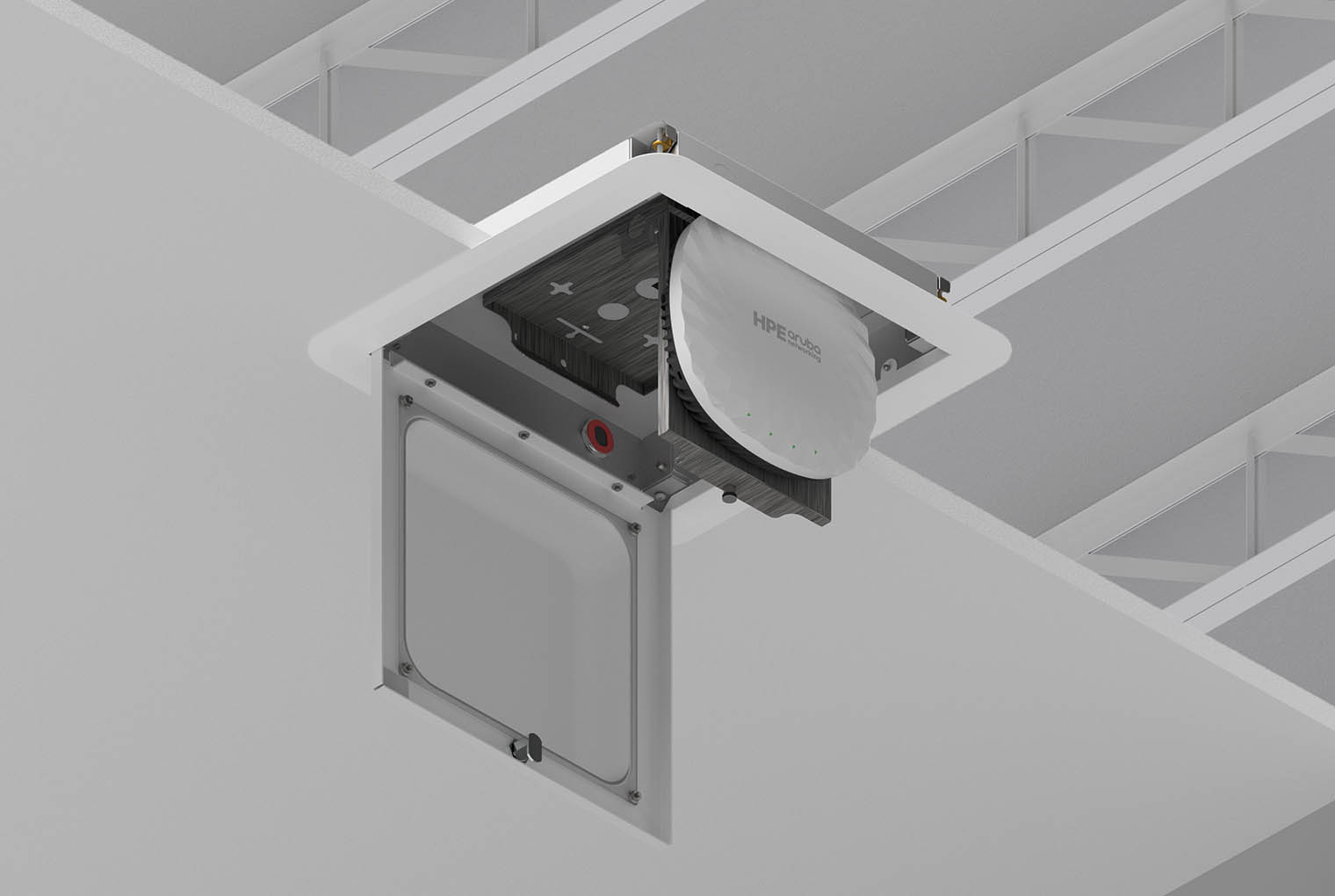

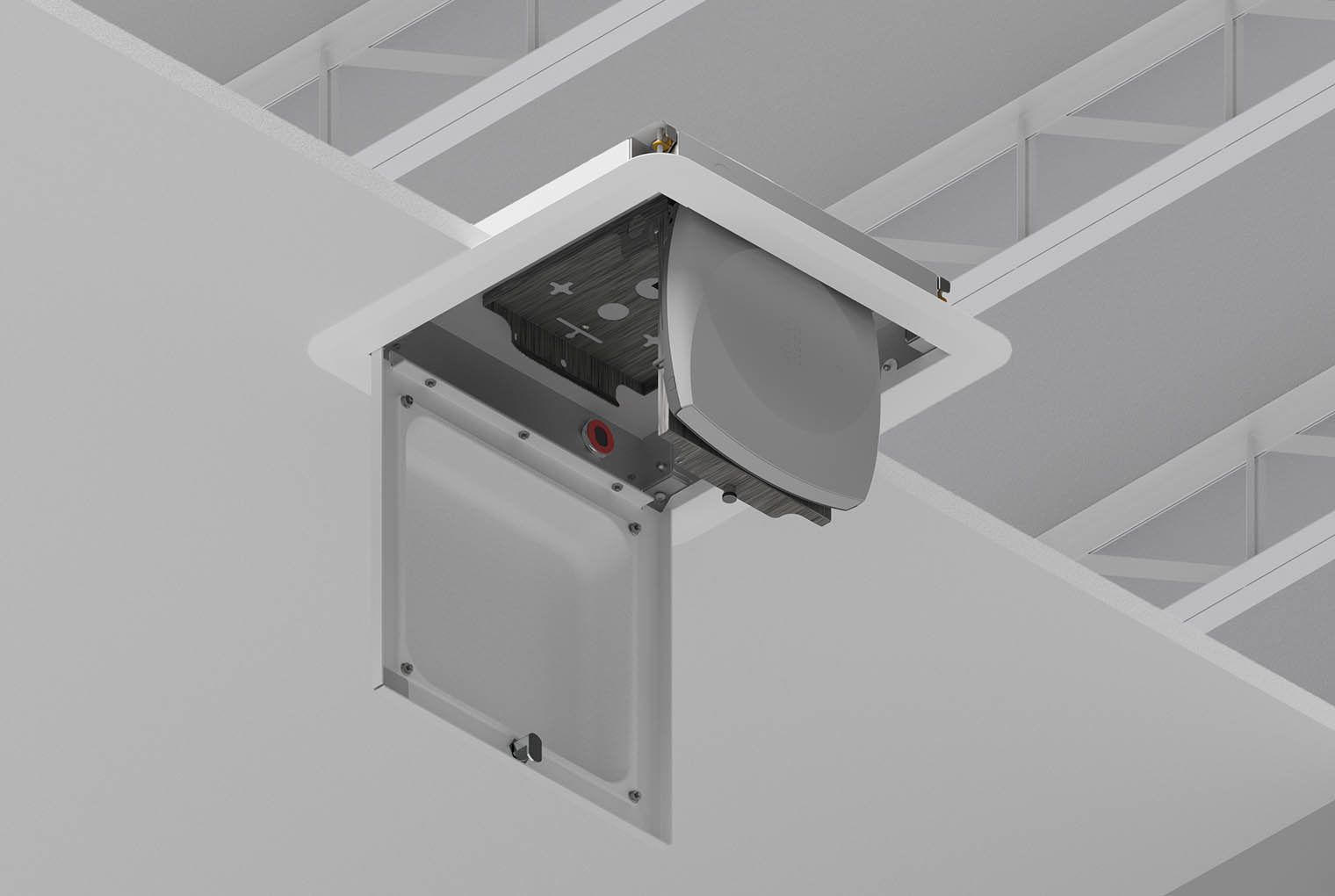

The 1075 series can be used in any interior application with hard-lid ceilings to recess and secure Wi-Fi APs. It features a smooth exterior design with beveled edges and rounded corners and a locking, impact-resistant dome door that hides the AP. Alternately, several AP-specific doors are also available. It will fit ceilings with 16-inch support spacing and provides the largest backbox for this application. Mounting hardware is recessed at the corners and secures the enclosure tightly to the ceiling. It has a full backbox that creates a suitable dust barrier to the space above the ceiling and a firestop grommet to seal the opening in the backbox for cables.

These features allow the 1075 series to be used in plenum ceiling spaces, to address infection control risk assessment (ICRA) procedures in healthcare facilities or to address ligature-resistant design requirements in behavioral healthcare facilities. Use the dome door option 1075-MPDOME in behavioral healthcare facilities.

The Model 1074 Wi-Tile™ series suspended ceiling enclosure mounts and secures 5G/LTE/CBRS Small Cell radio units (RUs), Wi-Fi Access Points (APs), and other telecom gear into suspended ceilings. The enclosure replaces a standard 2 x 2 ft. ceiling tile and must be supported by the ceiling structure. This series includes an adjustable depth swing down panel which permits simplified  mounting and access to RUs and APs. The model 1074 features an interchangeable door, available with either a general use, low loss  plastic dome to mount RUs inside the enclosure, an RU-specific door with a cutout to expose the antenna surface of the RU slightly below the ceiling, or a solid metal door for mounting antennas on the door surface.

Oberon® Wi-Tile® Ceiling Enclosures 1052-SOLiD is a locking 2 x 2 ft. suspended ceiling enclosure is designed specifically for SOLiD Alliance edgeROUs. This white powder-coated steel enclosure replaces a standard ceiling tile and is UL listed for installation in the plenum space. Provides for a professional, aesthetic installation.

• Sturdy, UL Listed hanger bar placed above suspended ceiling, designed for most vendors’ wireless access points
• T-bar attaches to hanger bar and permits most vendors’ AP to be attached using ceiling T-bar clip
• 1.5 ft. light pipe pushed through ceiling tile enables observation of AP status LED without lifting ceiling tile
• Secure AP above the ceiling
