Accessories

10" D (250 mm) Shelf; 2U x 17.25" (438.2 mm); Supports 40 lb (18.1 kg)

Designed to hold small peripheral equipment in a central location. Each shelf typically holds two units and allows a convenient cable run down inside of the rack channel. Mounting hardware not included. 19" rack mountable, holds equipment up to 17.35"W x 9.82"D (440.7 mm x 249.4 mm). Made of strong, lightweight aluminum; supports up to 50 lb (22.7 kg).

A convenient 15”D (380 mm) mounting shelf for miscellaneous equipment, test gear, etc. Mounting hardware not included. 19” version holds equipment up to 17.25”W x 14.82”D (438.2 mm x 376.4 mm), 23” version holds equipmentup to 21.25”W x 14.82”D (539.8 mm x 376.4 mm).

Reduced height design saves on valuable rack space. Center mount design is ideal for single sided racks, mount to either front or back channel face. Mounting hardware not included. 19"W version holds equipment up to 17.25" W x 15.82"D (438.2 mm x 401.8 mm), 23"W version holds equipment up to 21.25"W x 15.82"D (539.8 mm x 401.8 mm). Made of strong, lightweight aluminum; supports up to 40 lb (18.1 kg).

Reduced height design saves on valuable rack space. Mounts to either front or back of rack channel face. Mounting hardware not included. 19" version holds equipment up to 17.25"W x 18.82"D (438.2 mm x 478.0 mm), 23" version holds equipment up to 21.25"W x 18.82"D (539.8 mm x 478.0 mm). Made of strong, lightweight aluminum; supports up to 40 lb (18.1 kg).

Extra deep design is convenient for mounting large equipment requiring additional support. Mounting hardware not included. 19" Version holds equipment up to 17.75"W x 25.8"D (450.9 mm x 655.8 mm), 23" version holds equipment up to 21.75"W x 25.8"D (552.5 mm x 655.8 mm). Made of strong, lightweight aluminum; supports up to 150 lb (68.0 kg). 19" version is UL Listed: File E140851; Category DUXR (US), DUXR7 (Canada) - Communications Circuit Accessory.

Many storage solutions may cause kinking, twisting and cutting of cables during shelf extensions and retraction. CPI's flexible polycarbonate belt, which fits in the rear undercarriage, solves these problems. The belt easily attaches to either the left or right side of the vertical bracket and contains eight molded releasable cable bundles measuring up to 1" (25.4 mm) in diameter.

Reduced height design saves valuable rack space and perforated shelf keeps equipment cool, includes bottom ventilation for enhanced airflow circulation. Mounting hardware not included. 19" version holds equipment up to 17.75"W x 19.8"D (450.9 mm x 503.4mm). Mounts on 3"D (80 mm) double-sided racks only. Made of strong, lightweight aluminum; supports up to 60 lb (27.2 kg).

Provides centered loading for deeper and heavier equipment. Mounts on 3"D (80 mm) double-sided racks only. Mounting hardware not included. 19" version holds equipment up to 17.75"W x 21.5"D (450.9 mm x 546.0 mm), 23" version holds equipment up to 21.75"W x 21.5"D (552.5 mm x 546.0 mm). Made of strong, lightweight aluminum; supports up to 100lb (45.4 kg). 19" version is UL Listed: File E140851; Category DUXR (US), DUXR7 (Canada) - Communications Circuit Accessory.

Specially designed for the QuadraRack 4-Post Frame, these shelves are available solid or vented. 1U x 19"W x 29"D (740 mm); supports up to 200 lb (90.7 kg).

Convenient for mounting large equipment requiring additional support. Unique versions available for 3" and 6" rack channels. Mounting hardware not included. Made of strong, lightweight aluminum; supports up to 200 lb (90.7 kg).

Provides a sliding shelf for front access to all equipment. Mounting hardware not included. 18"D (460 mm) shelf extends out an additional 16" (410 mm) from closed position. Lockable in fully extended and fully retracted positions. 19" version holds up to 16"W x 17.5"D (410 mm x 445 mm) equipment, 23" version holds up to 20"W x 17.5"D (410 mm x 445 mm) equipment. Mounts on 3"D (80 mm) double-sided racks only. Made of sturdy, lightweight aluminum; supports up to 100 lb (45.4 kg).

For use with small equipment such as modems, routers and fiber modules in 19” EIA racks

Mount to CPI Universal or Standard Racks, regardless of width. Fixed rollers prevent rack from accidental turning. Adds 2" (50 mm) to rack's height. Supports 500 lb (226.8 kg).

Full swivel capability allows rack to be easily moved, providing access to equipment. The front wheel locks to prevent unintentional movement. Mounts to most CPI Universal or Standard Racks and adds 1-1/4" (31.8 mm) to rack's height. Two-piece construction of 1/4" (6.4 mm) aluminum complete with hardware. Sold in pairs; load capacity 750 lb (340.2 kg).

Allows rack to be moved, providing access to equipment. Wheels may be locked to prevent moved during assembly stages. Holds any width CPI Universal or Standard Rack.

Required hardware for securing equipment racks and frames to both concrete and wood floors. Concrete kit has four 3/8" thread components or four 1/2" thread components. Wood kit has four 3/8" thread components

Easily routes cabling wherever ceiling support of heavy cable is required. Can also be suspended from threaded drop rods.

Provides vertical cable management space between racks butted side-by-side by mounting to the hole pattern across rack channels. Large size, 2.3"H x 2.8"W x 4"D, accommodates larger cable bundles. Made of thick aluminum with rounded edges to reduce cable insulation damage. Sold individually or in a box of 100.

It hooks onto the central track at any point and features a T-slot extrusion on each side for attaching accessories and a thumbscrew for quick adjustment.

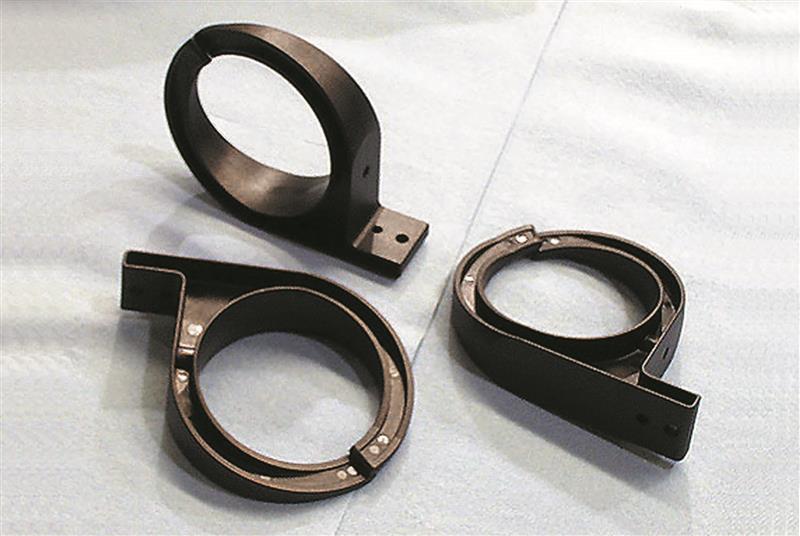

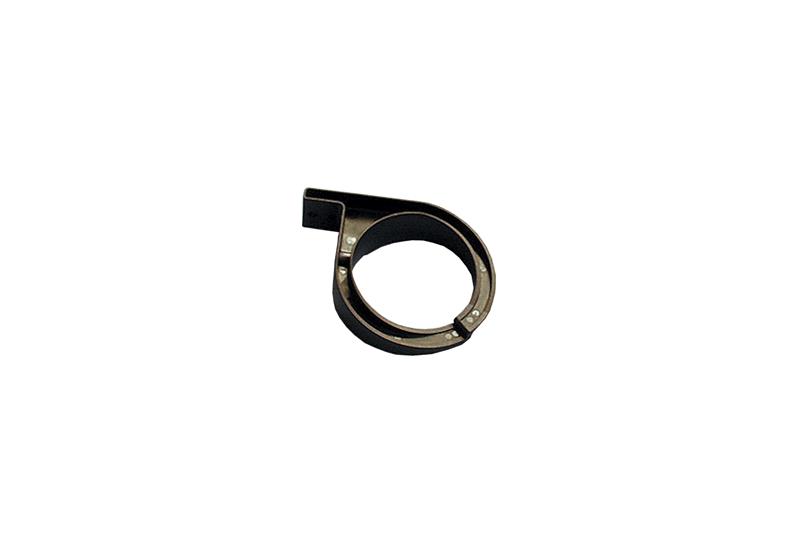

Attached to the Standard Swing Gate Wall Rack and the Fixed Wall-Mount Equipment Rack. Creates a pathway from the wall to the front, side or rear of the equipment mounting space.

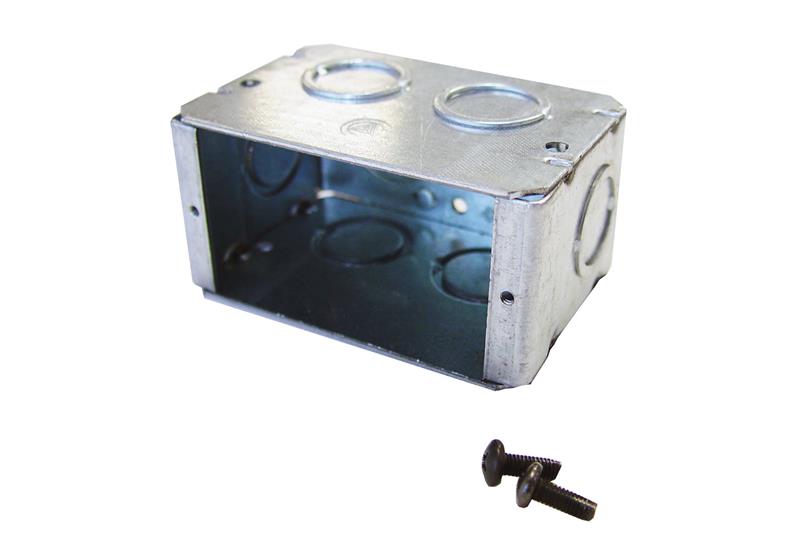

The Duplex Electrical Outlet Box for Seismic Frame Two-Post Rack is a single-gang electrical outlet box for a single duplex receptacle that attaches to the base of the Seismic Frame Two Post Rack. The box provides a convenient location for a single duplex outlet to provide electricity to equipment on the rack.

The Duplex Electrical Outlet Box has eight concentric knockouts for 1/2” or 3/4” conduit. Two knockouts on each side and on the back of the box and one on each end. Four knockouts, the two on the top side and the ones on each end are accessible when the box is installed. Plan conduit connections to attach to the ends or top of the box.

Included Hardware: 2 #10 x 1/2 self-tapping screws.

Rear Panel Kit for Motive® Single-Sided Vertical Cable Manager provides added protection and/or in thermal containment environment.

Supports cable and wire in communication closets, on backboards, equipment racks or wherever cable runs are required. These rings are made of high-strength, fire-retardant material with rounded edges to prevent damage to cable and wire insulation, while providing easy pull-through. Mounting hole configuration allows rings to be attached to most surfaces, including CPI equipment racks. The open design allows for easy adds, moves and changes eliminating the need to feed through cable. Mounting hardware not included.

Used for easy and space-saving mounting of standard 110D Type Wiring Blocks (not included). Up to 1500 pair in one column can be mounted per side on a 7' x 19" rack and up to 3000 pair in two columns can be mounted per side on a 7' x 23" rack.

The Equipment Support Bracket mounts on the rear of the rack channel to provide safety and additional support for deep or heavy electronic equipment panel or rack mounted on CPI racks. Supports electronic equipment weighing up to 60 lb.

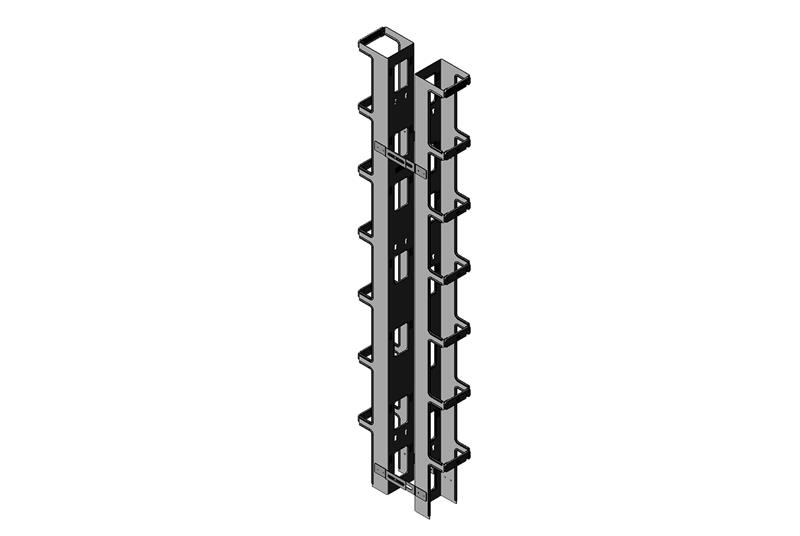

The Vertical Cabling Section for Seismic Frame® Two-Post Rack provides a double-sided, front and rear cable pathway next to CPI’s Seismic Frame® Two-Post Rack. Separate front and rear 6”W x 6.38”D (150 mm x 162 mm) cable managers attach with included offset brackets to align with the front and rear of the rack.

Floor Bracket secures the base of Evolution Vertical Cable Managers to the floor when located at the end of a row of equipment racks. Floor Clamp Kit; Evolution Cable Manager; 12 Floor Clamps; Black

Side Panel Kit for Motive® Vertical Cable Manager provides added protection and/or in thermal containment environments.

This adjustable, strong, easy to install rack bracing kit provides a cost effective, attractive solution to bracing an equipment rack or auxiliary frame. It attaches directly to the wall and rack top with bolts to provide positive bracing.

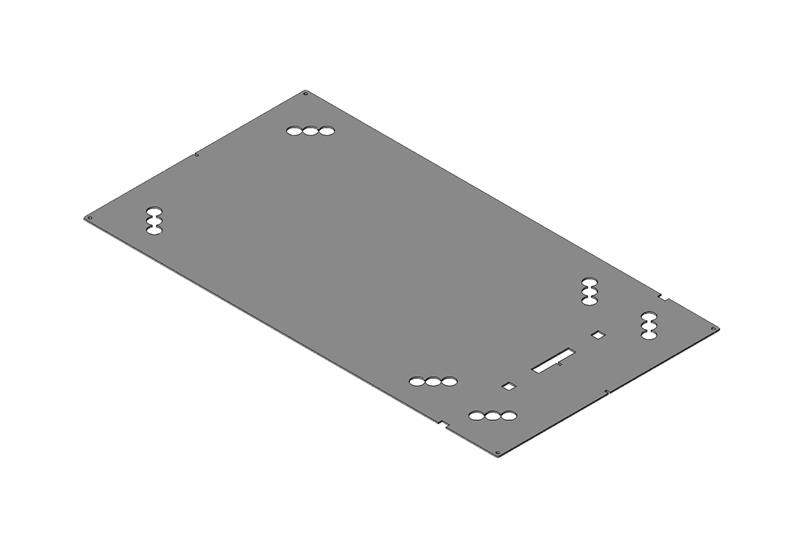

Quickly and easily locate and drill holes for Seismic Frame® Two-Post Rack floor anchors (which attach the rack to the concrete floor). The Seismic Frame Two-Post Rack is designed specifically to support network equipment in areas with seismic activity. The welded, steel Seismic Frame Two-Post Rack resists the swaying motion caused by earthquakes to reduce the amount of vibration transferred through the rack to equipment and is less likely to be damaged during a seismic event, which means faster network recovery.

Use these cable loops to hold and dress cable vertically. Attach to walls or racks where width is limited. Mounting hardware not included.

Rotating Management Finger Kit positions anywhere front-to-back along Accessory Rod Assembly to secure and isolate cable bundles. It rotates and locks into position in 45 degree increments on Accessory Rod Assembly for flexible cable support anywhere within the manager (Not for use with 6”W (150 mm) and 8”W (200 mm) managers).

Creates a separate cable pathway for premise cables at the back of Motive Single-Sided Vertical Cable Manager

Dual PDU Bracket Kit attaches directly to the Motive's central track and provides a flexible and convenient method of supporting up to two vertical PDUs side-by-side.

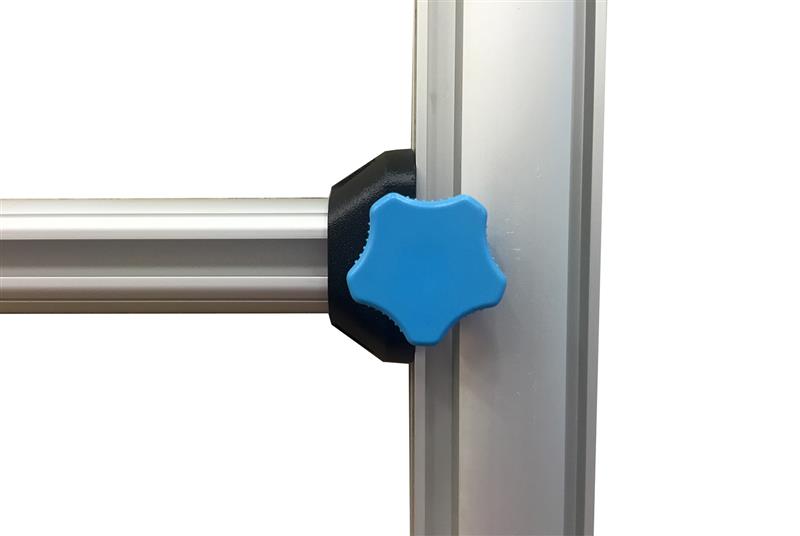

Cable Bundle Swivel Kit can be used anywhere on the central track or Accessory Rod Assembly, as well as multiple points on the Rotating Management Finger.

Mid Panel Kit for Motive® Double-Sided Vertical Cable Manager

It hooks onto the central track at any point and features a T-slot extrusion on each side for attaching accessories and a thumbscrew for quick adjustment.

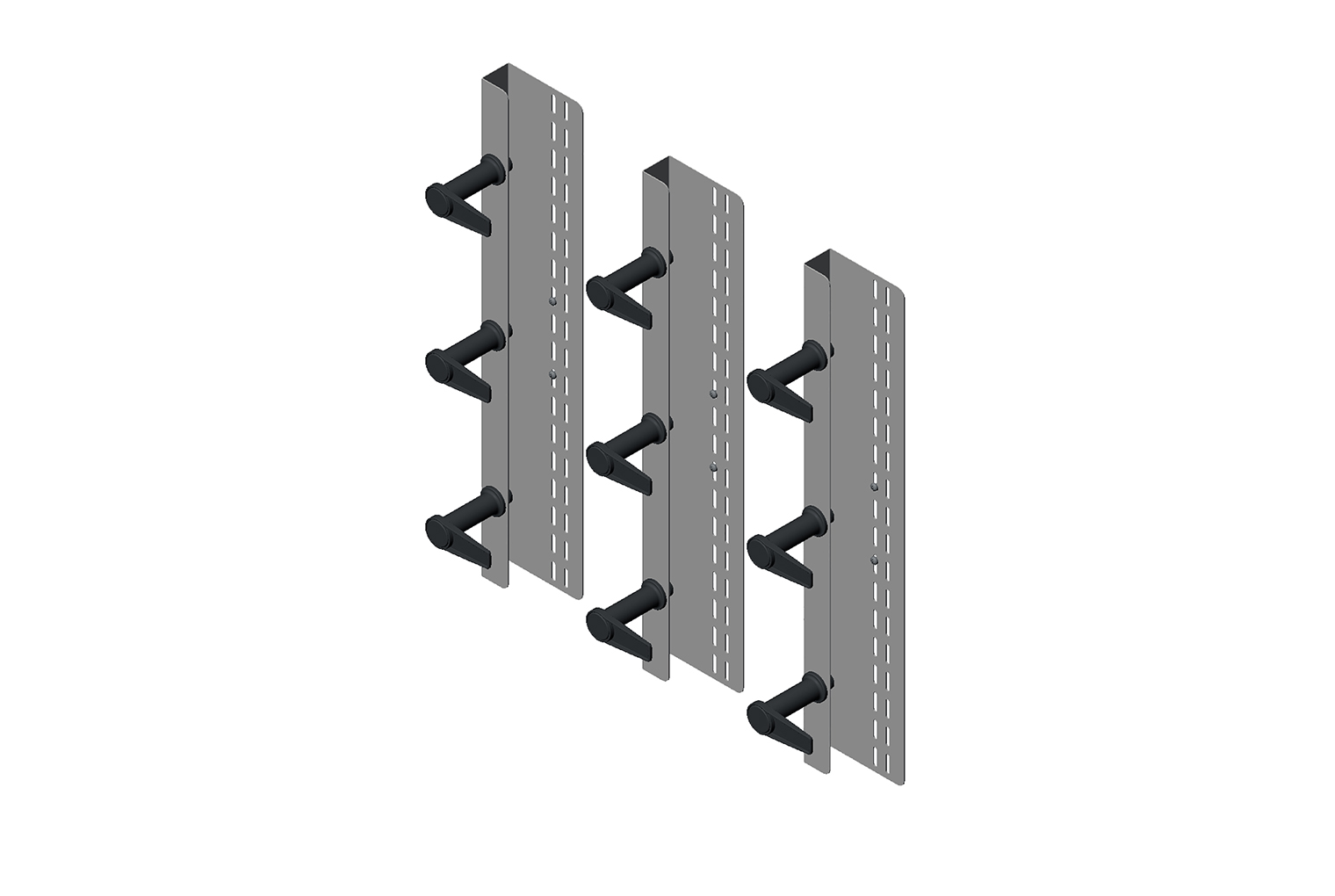

The Fiber Segregation Kit creates a separate pathway for fiber cables and patch cords inside Evolution Vertical Cable Managers.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.

Cable Divider Bar Kit provides tie points for cables inside Evolution Vertical Cable Managers and divides the interior of the cable manager to create multiple pathways for cables.

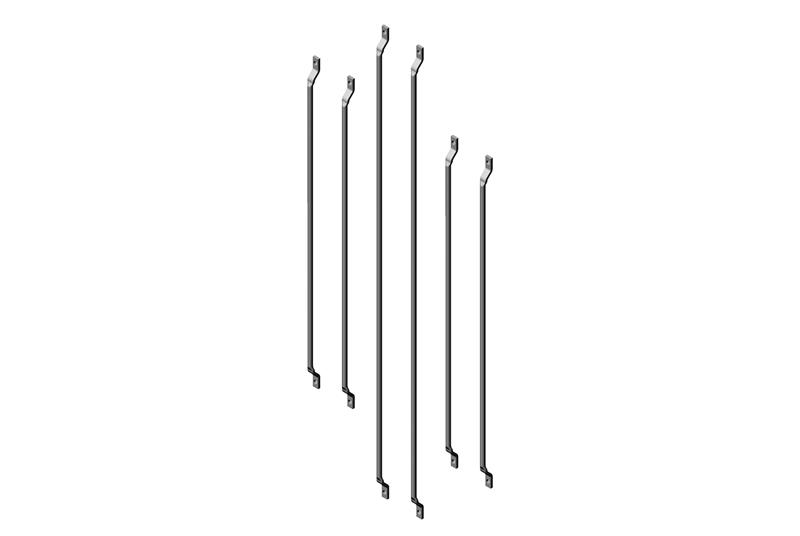

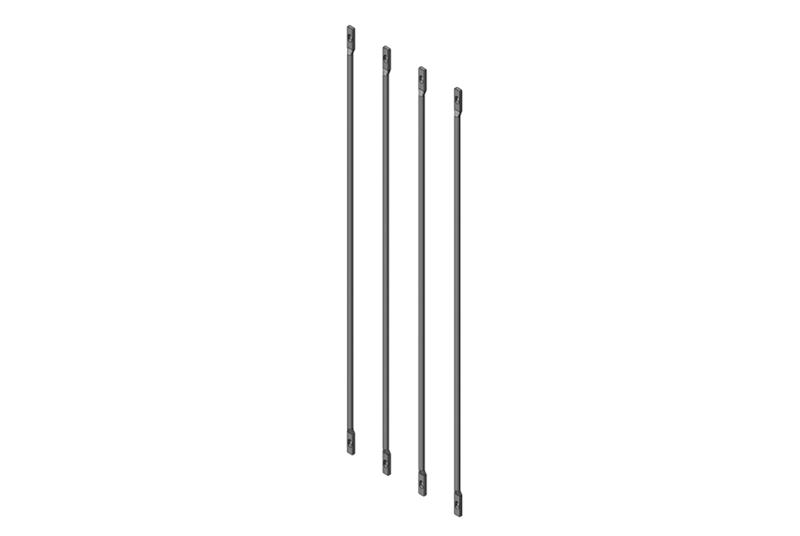

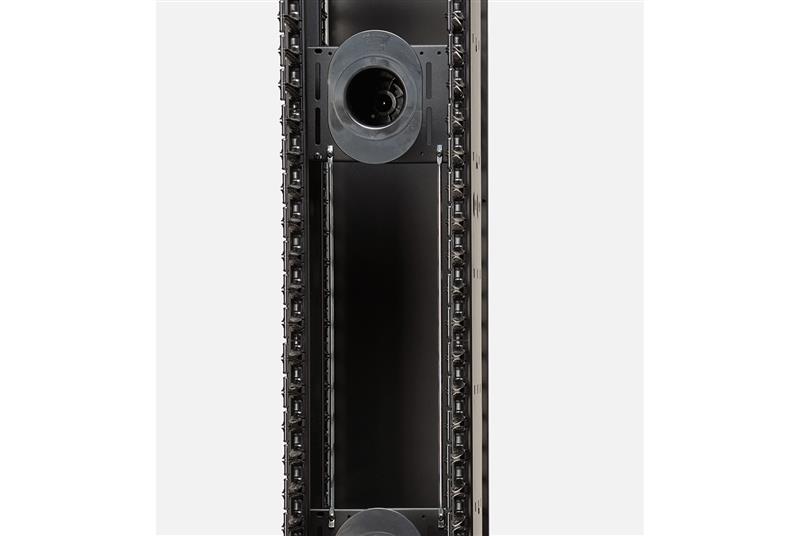

Cable Lashing Bar Kit provides tie points for cable inside Evolution Vertical Managers. Use up to six cable lashing bars (front/rear) in 6"W (150 mm) vertical cable managers and up to ten (front/rear) in the 8"W (200 mm), 10"W (250 mm), 12"W (300 mm), and 15"W (380 mm) vertical cable managers. Each kit includes four round .23" (5.7 mm) diameter 20.6"L (524 mm) steel lashing bars and mounting hardware.

The Fixed Accessory Panel Kit includes three additional Fixed Accessory panels for the Evolution Single-Sided Vertical Cable Manager.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.

The Movable Mid-Section Kit includes three additional Movable Mid-Section panels for the Evolution Double-Sided Vertical Cable Manager.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.

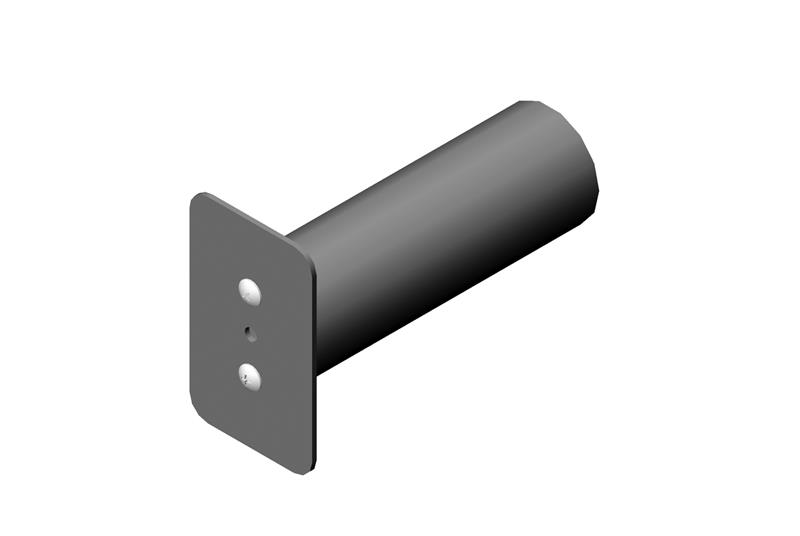

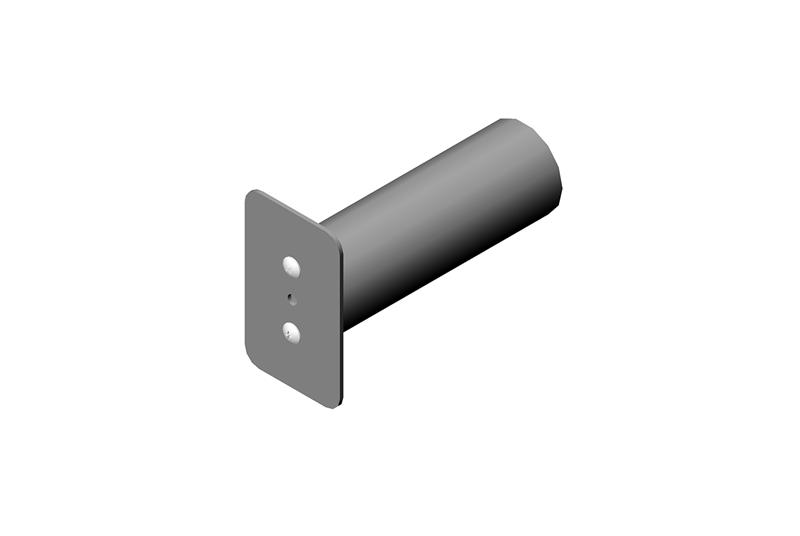

The Cable Spool Kit includes four small cable spools to provide slack management and strain relief for patch cords and jumper cables inside the Velocity® Vertical Cable Managers. Attaches to the mid panel with included hardware. Use in 6"W (152 mm) or wider vertical cable managers; one kit per side. Spools are 2" (51 mm) in diameter and 6"L (152 mm) and made from aluminum; painted black. Each kit includes four spools and mounting hardware.

An economical cable management solution for CPI Rack Systems. Create vertical and horizontal pathways that store and organize premise cables and patch cords on two- and four-post Rack Systems.

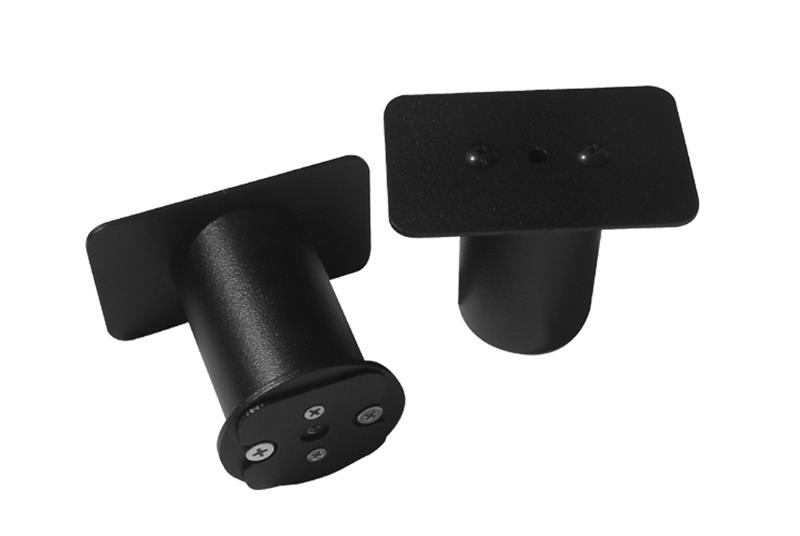

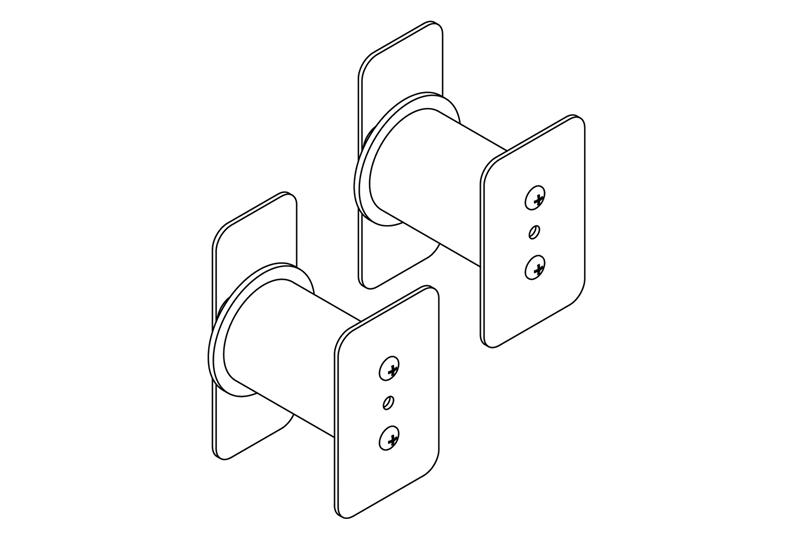

Use the 2" (50 mm) Diameter Fiber Management Spool in Global Vertical Cabling Sections to support fiber and copper cables. The spools meet EIA/TIA bend radius requirements and minimize cable tangles and tears for more efficient data transmission.

Used to support equipment racks installed on 4" to 36" (100 mm to 910 mm) height raised floor support systems. Racks are mounted to sub or base floor using 5/8" threaded rod and brackets.

Designed to be used on narrow and wide Vertical Cabling Sections to provide a clean, professional appearance. Available in metal or plexiglass versions; plexiglass for 7' (2.1m) only; in sizes to fit your installation.

Cable bundles are held securely in place on the Rack Radius Drop by using the included Saf-T-Grip® Center Grommet Buckle Cable Management Straps.

Organize patch cords and jumper cables by RMU. Kit includes 7 RMU T-shaped plastic cable guides that snap onto the front and rear of the rack frame.

Increases the load bearing capacity of the 18” deep and 25” model Standard Swing Gate Wall Racks up to 150 lb. This bracket is UL Listed and includes installation hardware and instructions.

Use the Flush-Mounted Wall Bracket to mount up to 6U of rack-mounted equipment, vertically, and flush to a wall. Ideal for areas where space is limited. The bracket has square-punched mounting rails and includes a pack of 25 Clik-Nut® . Supports 150 lb (68 kg). Wall mounting hardware not included.

Additional support for heavy rack-mount equipment. Attaches to the side of rack and provides a 1.5"W (38 mm) front-to-rear support surface for equipment. Supports 200 lb (90.7 kg) of equipment; includes hardware.

Tray holds full size keyboard with slide mounted under shelf to provide maximum tray width. Mounting hardware not included. Extends approximately 9" (230 mm) for full access to keyboard. Fits up to 19.25"W x 9"D (489 mm x 230 mm) keyboards. Made of strong, lightweight aluminum. Note: Does not support mouse pad attachment.

Solid, steel side panel for use with Adjustable Rail QuadraRack or Adjustable Rail ServerRack to cover the end of the rack and or vertical cable managers at the end of a row. Matches the height and depth of rack. Made of steel.

Used in combination with Square Hole Channel Adapters to complete installation of rack-mount equipment. Available in M6 or 10-32 threads.

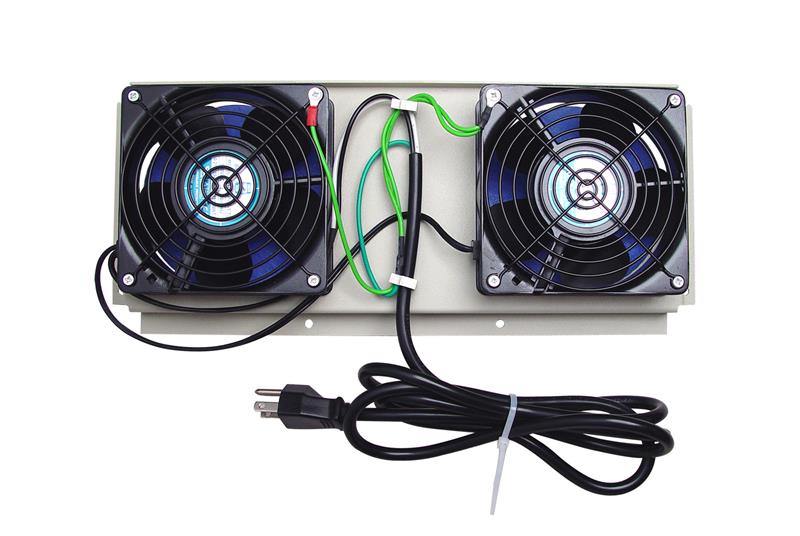

Replacement Filters for Fan Kit, Set of 4

Rack Channel Standoffs offer solutions to many electronic component positioning problems.

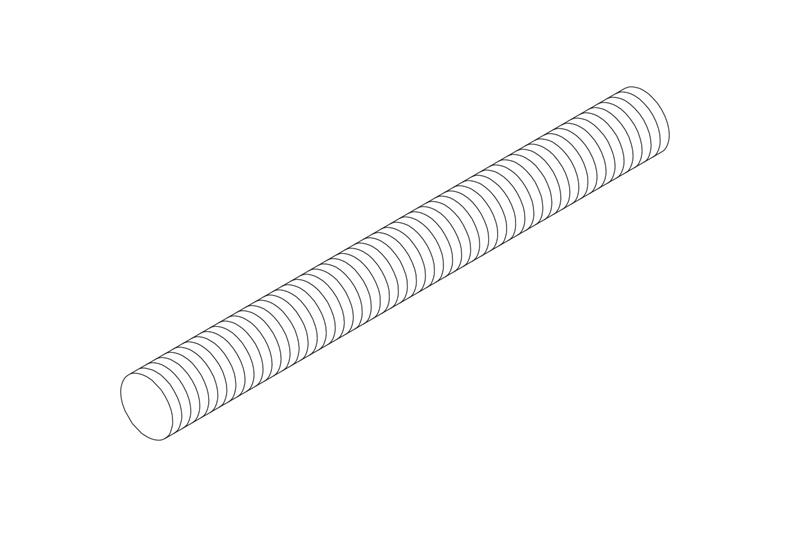

Use to secure threaded rods or stud bolts in concrete or masonry. The 20067-001 Anchor is used with 3/8-16 threaded rods, and the 06001-004 Anchor is used with 5/8-11 threaded rods. To install the 06001-004 Anchor, use the Anchor Setting Tool (06003-001).

The Clip-On Cover is attached to the horizontal wire management panel by simply sliding/clipping it into place. The cover further promotes the organized and secure appearance of any CPI rack installation.

Provides protection for equipment in racks from rolling gear or tool boxes.

Improves the appearance of QuadraRack 4-Post Frame and prevents the accumulation of dust and debris at the base.

Attach the rails at any point along the side of the rack for adjustable depth. Marked and numbered rack-mount spaces simplify equipment installation. Maximum mount depth is 6" (152 mm) less than channel depth of the rack.

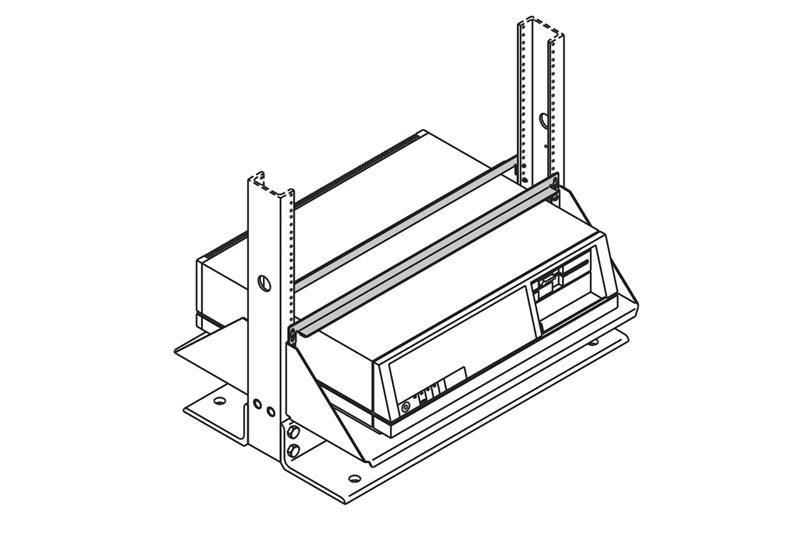

Prevents back-and-forth, side-to-side and up-and-down movement of shelf-mount equipment.

Mounts in a variety of ways to equipment rack or connector panels. 1-1/2" hole to hole.

Supports heavy peripheral equipment. 1U x 19”W steel, shelf with adjustable depth rear mounting brackets with solid or vented support surface; 17.68”W (449.1 mm). Supports 200 lb (90.7 kg) of equipment; includes assembly hardware.

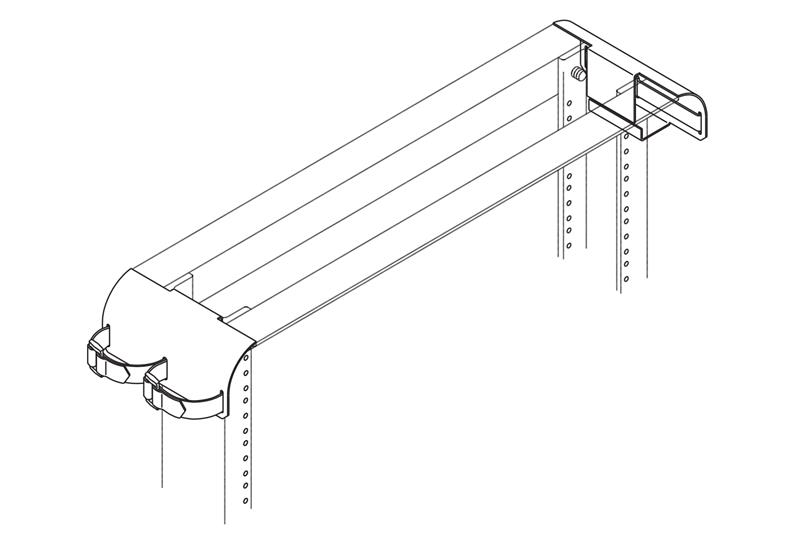

The Rack Radius Drop provides a transition from a horizontal cable run onto a rack, while maintaining the recommended bend radius. Cable bundles are held securely in place on the Rack Radius Drop by using the included Saf-T-Grip® Center Grommet Buckle Cable Management Straps.

Replacement base angle for two-post Universal Racks.

Tool-less Bend Radius Kit for Fiber Patch Cords ensures proper bend radius support for fiber optic patch cords when transitioning through T-shaped cable guides. It snaps onto the finger manager without any tools, and can be used for new or retrofit applications.

Optional supplementary server support arms firmly secure the tops of tall servers to the rack. In some instances, they can also help you mount your server if its captive screw holes are in the middle or top of the device. It is the ideal, cost-effective system for retrofitting existing racks to accommodate one or more servers, instead of reverting to a four-post rack or cabinet system.

Designed to support heavy cable runs, such as multiple strand PBX cable, data cabling and coax, along walls or wherever wall support of heavy cable runs are needed.

Purchase optional Supplementary Server Support Arms to firmly secure the tops of tall servers to the rack. In some instances, they can also help you mount your server if its captive screw holes are in the middle or top of the device.

CPI Rack Seismic Gusset kit can be added to any CPI Universal rack to stiffen critical load-supporting joints. Whenever possible the top of the rack should be stabilized using CPI Bracing Kit.

CPI offers a solution for those who have 7’H (2.1 m) x 23”W racks and need to mount 19” equipment along the entire length of the rack. Existing panel adapters are typically composed of two side panels which reduce the mounting width and center the equipment. CPI’s unique design performs the reduction on one side. Not only can you mount 19” equipment, but you also have room for cable management on the wide adapter panel.

Eight 2.25” (57.2 mm) oval pass-through ports with edge protectors provide cable access from front to rear of the panel. In addition, there are seven threaded holes along the front surface of the panels for mounting optional Center Grommet Buckle Saf-T-Grip Cable Management Straps to provide strain relief and vertical cable management.

Adding Finger Snaps Cable Guides onto a CPI cabling section is as easy as snapping your fingers. The unique, Finger Snaps design provides the critical cable guides needed to transition from the horizontal pathway into a CPI cabling section (VCS Vertical Cabling Sections or CCS Combination Cabling Sections).

Hardware kit that includes slip-on clip and mounting screw. Available in M-5 x .8 and 10-32 nominal sizes.

T-shaped cable guides (7U) snap-on to the front or rear of the rack to organize cables. The openings align with each rack-mount unit on the rack. For use with Adjustable Rail 4-Post Racks.

Rack Extension Kit provides additional height to existing rack. Kit includes one pair of rack channels, four plates, and assembly hardware

Improved appearance and prevents the accumulation of dust and debris at the rack base. Snaps securely in place over the base assembly.

Attaches to walls or racks where width is limited. Holds and dresses vertical cable runs. Mounting hardware not included.

VCS Offset Mounting Bracket attaches a CPI Single-Sided Wide Vertical Cabling Section to the side of the Seismic Frame® Two-Post Rack so that it aligns with the front of the rack. Kit includes four Offset Mounting Brackets.

Use two brackets per side to attach the Vertical Cabling Section. Brackets are slotted allowing front-to-rear adjustment. Made of steel.

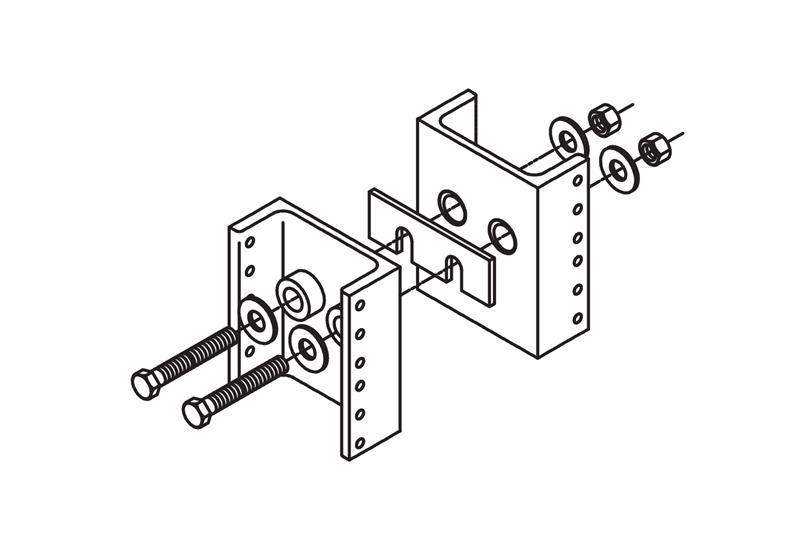

Bolts and spacer securely attach two racks mounted side-by-side.

Versatile 1.75"H (44.45 mm) rack-mounting hinges provide rear access to patch panels or other shallow equipment by allowing them to swing outward. Made from high-strength black composite material.

Holds full size keyboard and mouse. Slide is mounted under shelf to provide maximum tray width. Mounting hardware not included. Mouse pad tray is 10"W x 8"D (250 mm x 200 mm) and retracts out of the way when not in use. Fits up to 19.25"W x 9"D (489 mm x 230 mm) keyboards. Extends approximately 9" (230 mm) for full access to keyboard. Made of strong, lightweight aluminum.

Rack Panel Adapters allow 19"W equipment to be mounted on 23"W racks. They feature threaded #12-24 mounting holes and are available in a variety of mounting heights.

The Patch Panel Wire Management Bar provides the necessary wire management and strain relief required by ANSI/TIA/EIA-568-B. Sold individually. Attaches to rack with standard #12-24 rack screws (not included).

Use the 2" (50 mm) Diameter Fiber Management Spool to support fiber and copper cables within CPI's extensive line of vertical cabling sections.

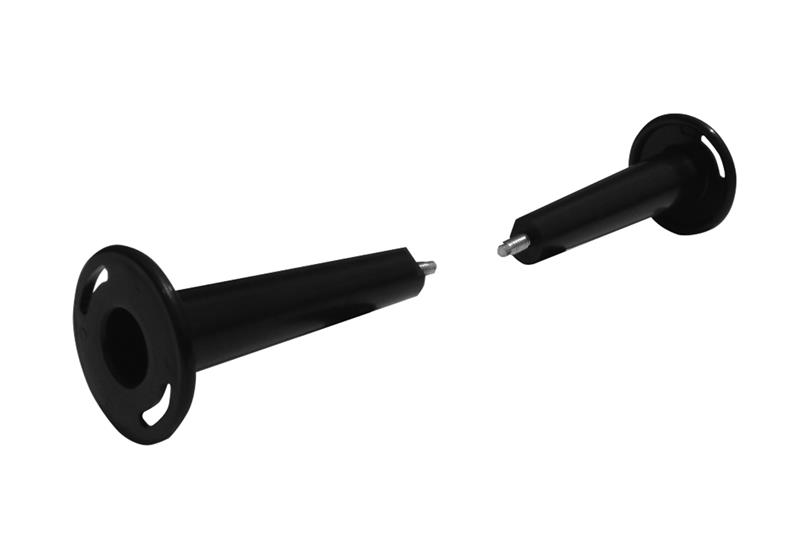

CPI Cable Distribution Spools promote a gradual bend for cable runs to aid in complying with ANSI/TIA/EIA-568B bend radius requirements (typically 4X the cable diameter). Routes all types of cabling from horizontal to vertical or vice-versa.

This lightweight aluminum shelf provides an attractive, easy method to save space, provide convenience, and protect CPUs from ground level environment hazards.

Use this strong bracing kit where there is a risk of seismic activity. Earthquake design criteria specify that equipment remain operational when subjected to earthquakes, even though some small amount of repairable secondary physical damage may occur.

This adjustable wall/ceiling brace provides a means of securing an equipment rack or auxiliary frame to meet earthquake safety codes.

Optional top angles for CPI Universal Rack.

Optional top angle for CPI Universal, Standard or 6" Deep Standard Racks.

Cable Distribution Spools provide slack management and strain relief for patch cords and jumper cables inside CPI vertical cable managers. Designed for use inside any CPI double-sided vertical cable manager 10”W and wider, including VCS, MCS, MCS-EFX, CCS, and CCS-EFX. This product kit includes (4) spools, (4) adapters and (16) screws for mounting use.

This larger clip holds a 100-pair telephone cable or up to 1" (30 mm) diameter tubing. There are also holes provided to lace additional cords to the top of the clip. The amount of direct pull required to separate the clips from a painted steel surface averages 15 lb (67 kg).

Cost-effective solution for supporting rack-mount network equipment. The QuadraRack® 4-Post Frame offers the strength and stability of a cabinet in an open mounting system, providing easy access for simplified installation and cabling along with unrestricted air flow for improved cooling and heat dissipation.

Side Mounted Fan Kit; 400 CFM, 115 VAC, 50/60 Hz, .19 Amp, NEMA 5-15P Plug or Fan/Filter Kit; 19"W; 2 Fans, 100 CFM Each

Air is drawn in through the louvers at the bottom of the enclosure and is forced out through the top louvers. Fans pressurize enclo- sure, forcing warmer air out top vents.

Includes (2) complete fan assemblies with and attached 5’L (1.5 m) power cord with a NEMA 5-15P Plug.

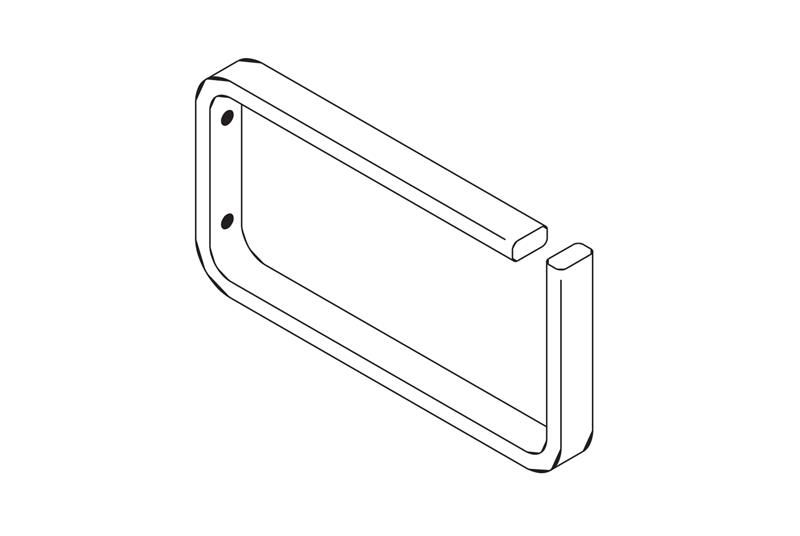

The Slip-On Cover, Ring Panel is designed for use with CPI's Large Horizontal Ring Panel. It easily attaches to the Ring Panel without the use of any tools. Once attached, patch cords can be placed in and removed from the Ring Panel without disturbing the Snap-On Cover.

Have you ever pulled cables out of the rack-mounted equipment accidentally? Do you need to maintain bend radius for your cabling? CPI's Rack-Mounted Cable Strain Relief Bracket is the answer. Made of high-strength aluminum, it includes ten flexible Saf-T-Grip Cable Management Straps. This bracket can be mounted at desired height and depth to position straps right where you need them reusable rivets allow Saf-T-Grips to be added or removed as required. Mounting hardware not included.

For mounting terminal blocks, card files and other equipment on 19" and 25" racks.

Provide seismic protection for shelf-mounted equipment. These are ideal for strapping down desktop CPUs or other similarly shaped equipment from being bumped or moved as a result of seismic activity.

Use this kit to bay two Four-Post Racks together.

Doubles the cable management capacity of any existing CPI Cable Distribution Spool. Use spools on racks and wallboards to create smooth vertical to horizontal transitions for the patch cords and jumper cables that connect network hardware. The 3.1" diameter flange attaches without tools.

For use with:

• Cable Distribution Spools (15002 or 15003)
• Cable Runway Cross-Member Radius Drop (12100)
• Cable Runway String Radius Drop (12101)
• 19" Horizontal Wire Management Panel (13070, 13075)

Use to organize horizontal cable runs. Large 2.8"H (71 mm) by 6"W (150 mm) heavy duty aluminum rings with rounded edges protect cable sheaths and will bind during installation. Sold individually and in quantities of 50.

Provide seismic protection for shelf-mounted equipment. These are ideal for strapping down desktop CPUs or other similarly shaped equipment from being bumped or moved as a result of seismic activity

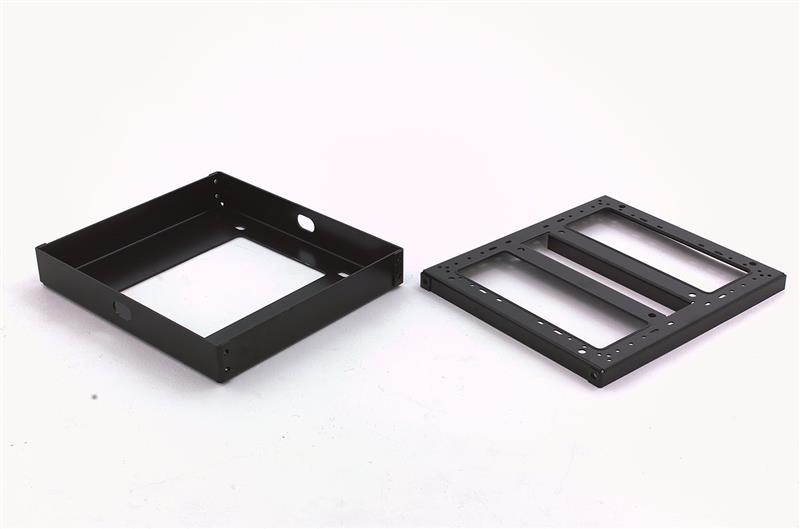

ExpandaRack Pan Sets designed to easily convert two CPI rack assemblies into one high capacity 4-Post Frame.

Provides retractable rack-mounting tray for most keyboards up to 8.5"D (216 mm). Mounting hardware not included. Extends 8" (200 mm), giving full access to keyboard. Retracts when not in use. 19" version holds up to 16.1"W (409 mm) keyboards. Made of strong, lightweight aluminum. This tray does not support the mouse pad attachment.

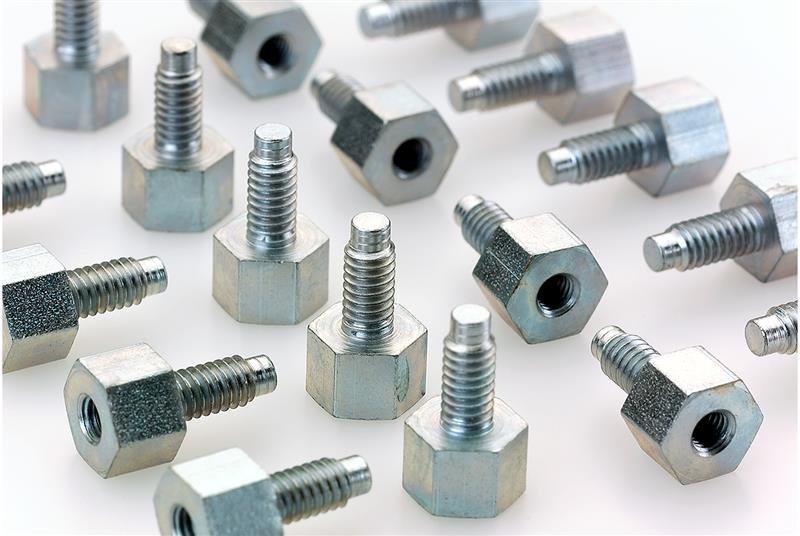

Converts 12-24 rack channel mounting threads to either M6 or 10-32 threads to allow captive thumb screws on equipment to secure in position.

These "L" brackets mount to the back of the rack channel to provide a convenient point to tie-down cable runs.

Improved appearance and prevents the accumulation of dust and debris at the rack base. Snaps securely in place over the base assembly.

The medium-sized 17000 and 17100 magnetic clips are designed to hold a 25-pair cable to several electrical cords. Keep cables within workstation areas near and off of the floor to reduce the chance of accidents. Nylon cable ties can be laced through the four square holes in the 17000 series to secure additional cables.

Standard Single-Sided Steel Shelf

Economical rack or wall-mounted shelf for miscellaneous equipment. Made of cold-rolled steel and may be rack or wall-mounted. 19” rack-mountable, holds equipment up to 17.25”W x 14.75”D (438.2 mm x 374.7 mm). Supports up to 35 lb (15.9 kg).

Standard Double-Sided Steel Shelf

An economical rack or wall-mounted shelf with twice the shelf space for centered loading and deeper equipment handling. Made of cold-rolled steel, this shelf mounts on double-sided racks only. 19”W rack-mountable, holds equipment up to 17.25”W x 21.50”D (438.2 mm x 546.1 mm) and supports up to 25 lb (11.3 kg) per side or 50 lb (22.7 kg) total.

Convenient mounting for monitor and one keyboard. Mounting hardware not included. The keyboard tray extends 8.6" (218 mm). 19"W rack trays must use small footprint keyboard; maximum width 16.30" (414 mm). 19" holds equipment up to 17.75"W x 19.8"D (450.9 mm x 503.4 mm), 23" holds equipment up to 21.75"W x 19.8"D (552.5 mm x 503.4 mm). Made of strong, lightweight aluminum; supports up to 200 lb (90.7 kg).

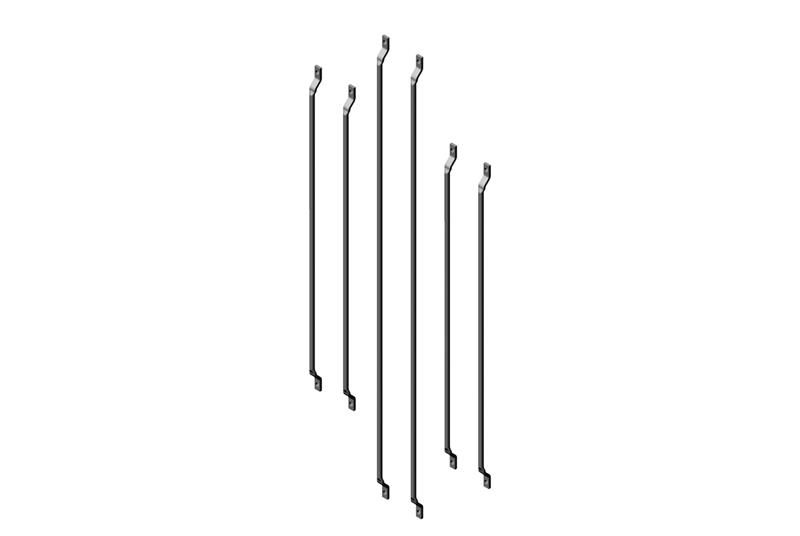

Provides tie points for cable inside Velocity Vertical Cable Managers. Attaches to the mid panel with included hardware. Use in 6"W (152 mm) or wider vertical cable managers; one kit per side.

Cost-effective solution for supporting rack-mount network equipment. The QuadraRack® 4-Post Frame offers the strength and stability of a cabinet in an open mounting system, providing easy access for simplified installation and cabling along with unrestricted air flow for improved cooling and heat dissipation.

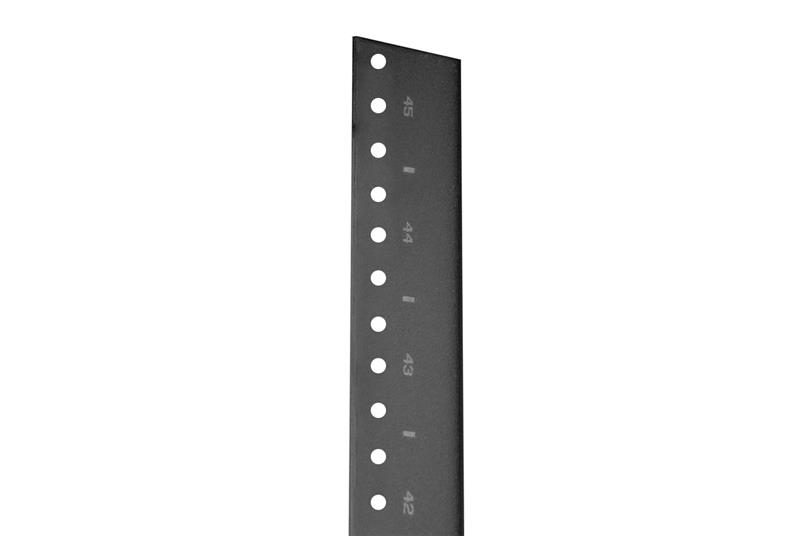

Additional pair of equipment mounting rails, which attach to the rear rack frame to create a solution with two mounting depths set between 15”D

(381 mm) and the rack depth. Includes installation hardware. #12-24 Tapped Rails.

One Top-Mount Cable Waterfall Tray is included with each rack to guide patch cords side-to-side or rack-to-rack. Guide patch cords side-to-side or rack-to-rack on Adjustable Rail 4-Post Rack. 6"W x 5.2"D (152 mm x 132 mm)

Add one or two feet of height to vertical cabling sections, providing a uniform vertical pathway from ceiling to rack. Mounting hardware included.

CPI's ServerRack is available in three models: ServerFrame, Adjustable ServerRack and Adjustable Rails ServerRack. The ServerFrame features a fixed rail, while the adjustable versions provide adjustable depth mounting options.

A Center Rail can be added to the Adjustable ServerRack and QuadraRack® to provide an additional pair of mounting rails for rack-mount equipment. Made of durable steel and shipped with marked and numbered rack-mount spaces to simplify equipment installation, the Center Rail consists of one pair of 19W mounting rails with square-punched mounting holes. The adjustable depth gives you the ability to attach the rails at any point along the side of the rack as well. With a 1,000 lb (453.6 kg) equipment load bearing capacity when used as an independent pair of rails, rack load remains 2,000 lb (907.2 kg) when Center Rail is used as the front or rear pair of a four-point mounting solution versatile indeed. 51U, 96 (2400 mm), black, shipping weight 26 lb (11.8 kg).

ExpandaRack is designed to easily convert one CPI two-post rack into a high-capacity 4-Post Frame.

Extended Fingers Bracket provides extra-deep cable management capacity for applications that require large cable bundles or thick cable.

Extra space also improves cable bend radius management, meeting or exceeding the needs of the latest Category 5e/6/6a or fiber industry standards. It is a cost-effective accessory for cable management in specific areas of the rack, rather than along its entire height.

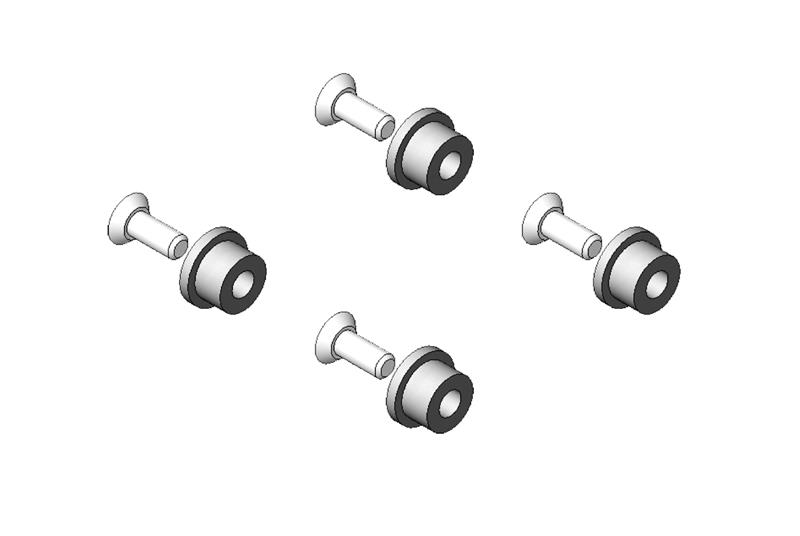

Includes mounting hardware that allows two CPI Vertical Power Strips to attach to the keyholes on the sides of the Seismic Frame Two-Post Rack or the back of the Vertical Cabling Section. This bracket cannot be used on the same side as the Vertical Cabling Section or Cable Management Fingers Kit.

Designed to support cable and wire in communications closets, on backboards, equipment racks or wherever cable runs are required. The versatile brackets are made of high-strength, fire-retardant composite material. Rounded edges prevent damage to cable and wire insulation, while providing easy pull-through. Mounting hole configuration allows bracket to be attached to most surfaces, including CPI equipment racks. Color is compatible with most equipment. Mounting hardware no included.

Designed to mount to the upright channels of CPI Universal Racks. Made of high-strength, fire-retardant material with rounded edges to prevent damage to cable and wire insulation, while providing easy pull-through. The open-design "C" rings allow for easy adds, moves and changes, eliminating the need to feed through cable. Mounting hardware not included.

The Transition Plate aids in compliance with ANSI/TIA/EIA-568B bend radius requirements. Designed to promote a gradual, controlled bend for both UTP and optical fiber cable. Slotted holes allow bend radius location to be user adjustable. Attachment of optional transition plate creates a solid wireway between Racks With 3"D Channels. Mounting screws not included. Sold individually.

CPI Vertical Wire Management Loops are used to organize patch cords and cabling. Maintains vertical wire management for one or two racks mounted together. Mounting hardware not included. Does not protrude into rack mounting space.

Use combination pan head, pilot point, sems mounting screws to attach equipment to racks and cabinets.

Alternate top support for Universal Rack.

Use to secure threaded rods or stud bolts in concrete or masonry. The 20067-001 is used with 3/8-16 threaded rods, and the new 06001-004 5/8-11 anchor is for use with 5/8-11 threaded rods and studs. To install the 06001-004 anchor, use the specially designed anchor setting tool (P/N 06003-001). Installation instructions included. Sold individually.

The #12-24 Combination Pan Head, Pilot Point, Mounting Screws attach equipment to racks and cabinets. A cutting notch in the thread removes paint in threaded holes to improve metal-to-metal contact. The pilot point reduces cross-threading. The combination head can be used with #3 Phillips and slotted screwdrivers. Available in choice of Zinc plated or black finish in packages of 50 and 1000.

Saf-T-Grip® Open Loop Series

Used to strap together free hanging computer cables for a tangle-free installation. Strap is held in place by a loop that adheres to one cable. Simply peel the hook and loop sides apart to remove strap.

Saf-T-Grip®  End Grommet Buckle Series

The buckle design provides extra strength for those harder to manage cables. Mounts cable along walls and backboards or wherever horizontal cable runs are required. Wrap this strap around cables and back through the nylon buckle. Pull snugly, cinching down the cable for secure fit.

Saf-T-Grip®    Center Grommet Buckle Series

The buckle design provides twice the holding strength of ordinary straps. Unique center grommet feature provides a sturdy fixture for attaching straps in any direction. Simply loop the strap around cables and back through the buckle. Secure cinch back and down for a secure hold.

Used with anchors to mount racks to concrete floors. Zinc plated.

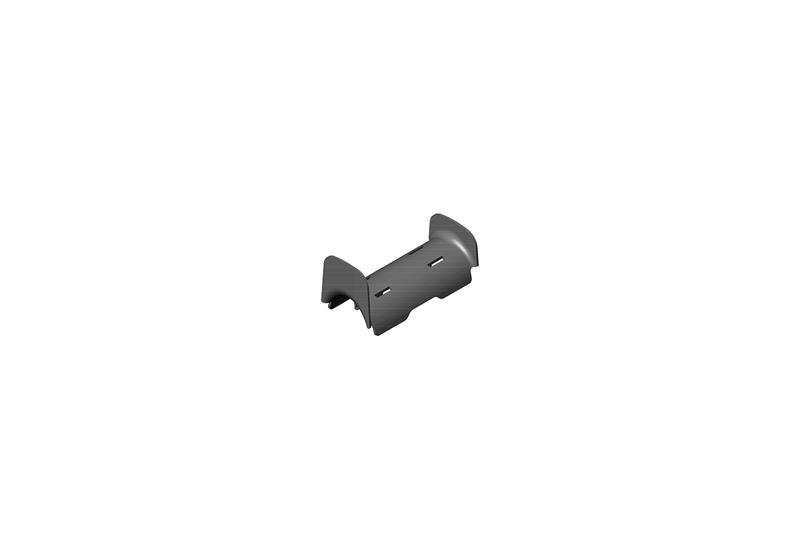

Half Spool Kit for Motive® Vertical Cable Manager attaches to Accessory Rod Assembly. Half Spools can be used over and under to create a complete round spool or front/rear to create two half spools. Attaches to Accessory Rod Assembly. Half Spools can be used over and under to create a complete round spool or front/rear to create two half spools. (Not for use with 6”W (150 mm) and 8”W (200 mm) managers).

Touch-Up Paint matches your CPI product finish and allows you to touch up dings and scratches.

The Two-Piece Side Panel Kits are available for both the Evolution® Double-Sided and Single-Sided Vertical Cable Managers, which are typically placed at the end of a row of equipment racks.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.

Two-piece PDU Bracket Kit can be used with both the Evolution® Double-Sided and Single-Sided Vertical Cable Managers.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.

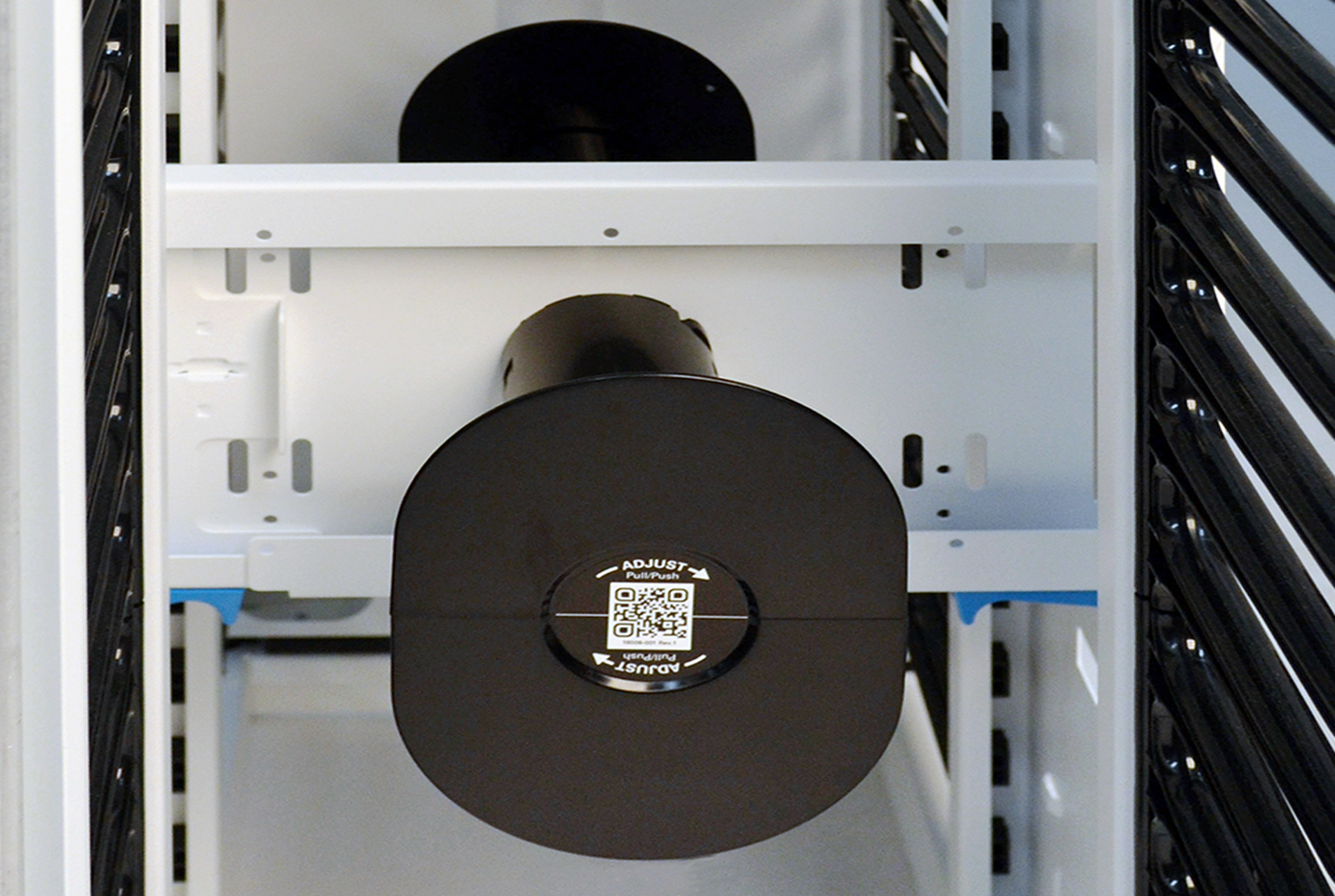

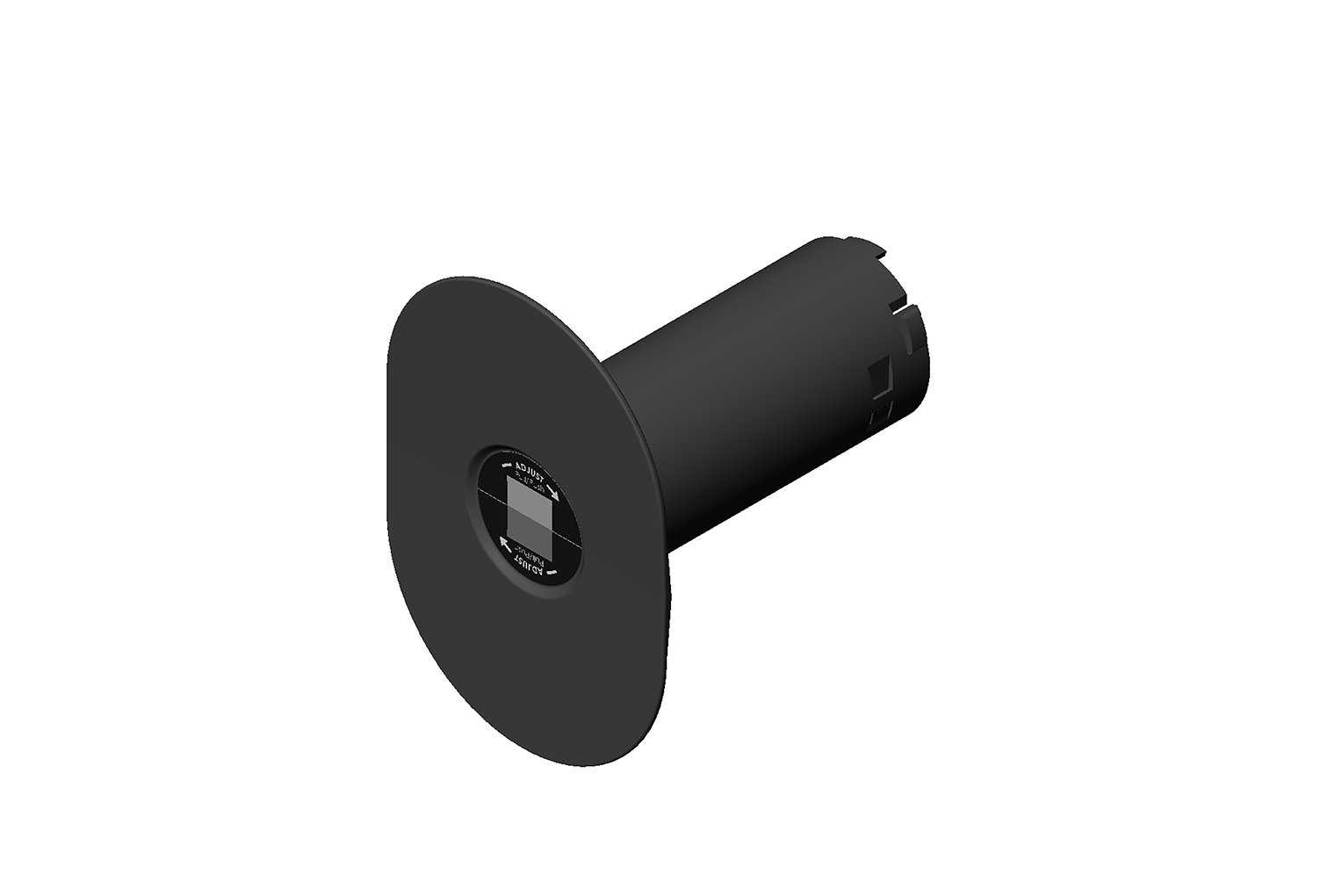

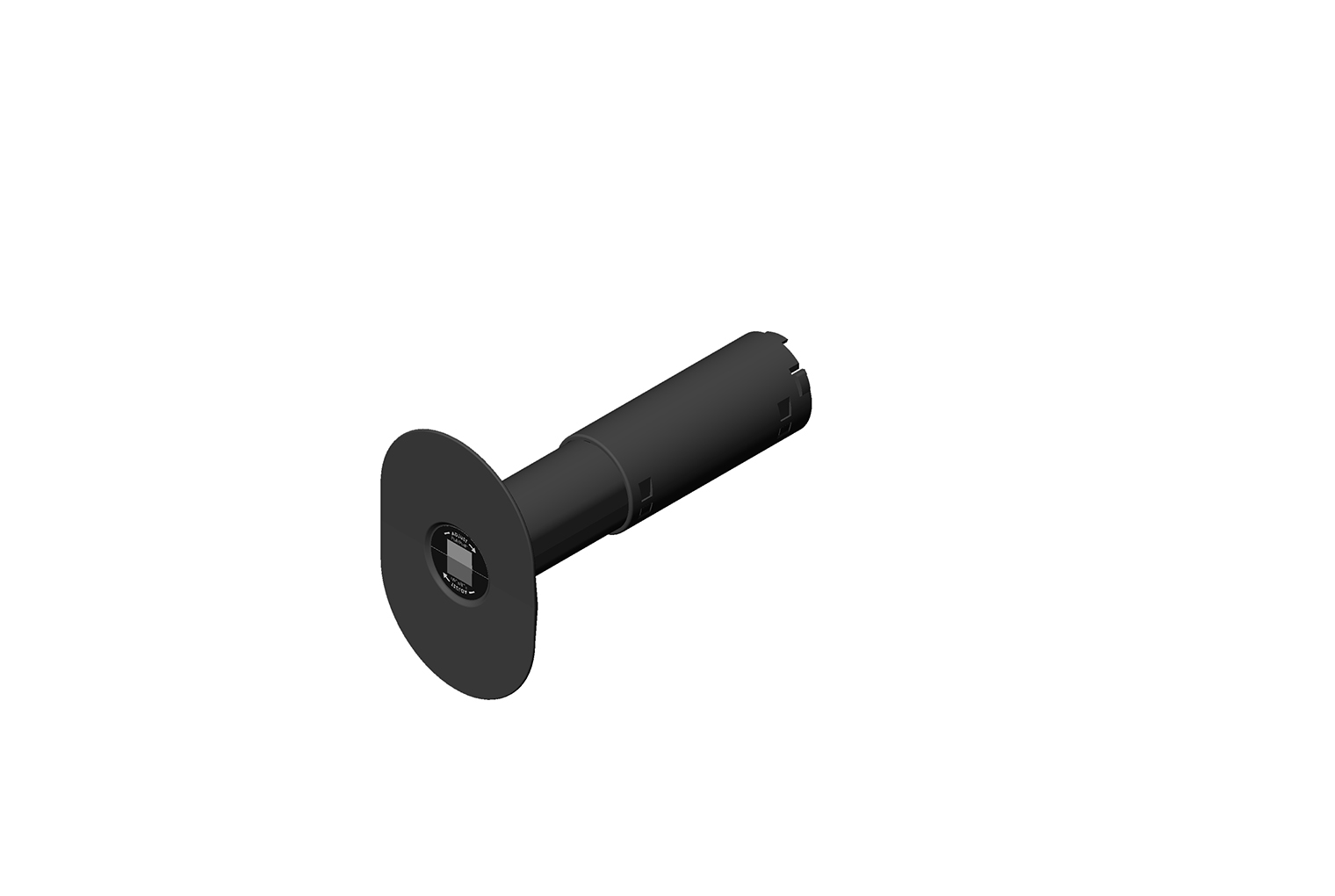

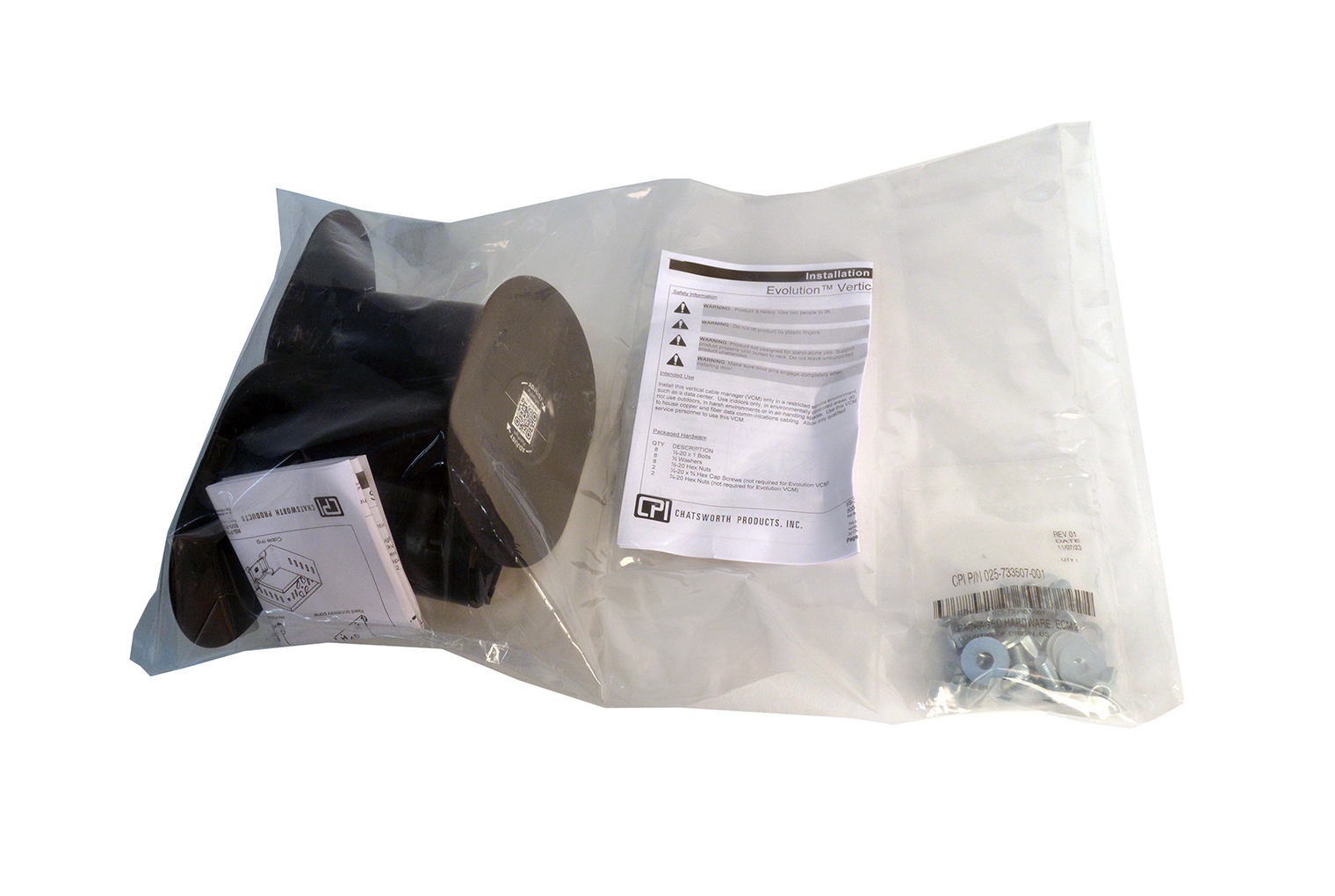

The Tool-Less & Adjustable Cable Distribution Spools provide slack management and strain relief for patch cords and jumper cables inside Evolution® Vertical Cable Managers.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.

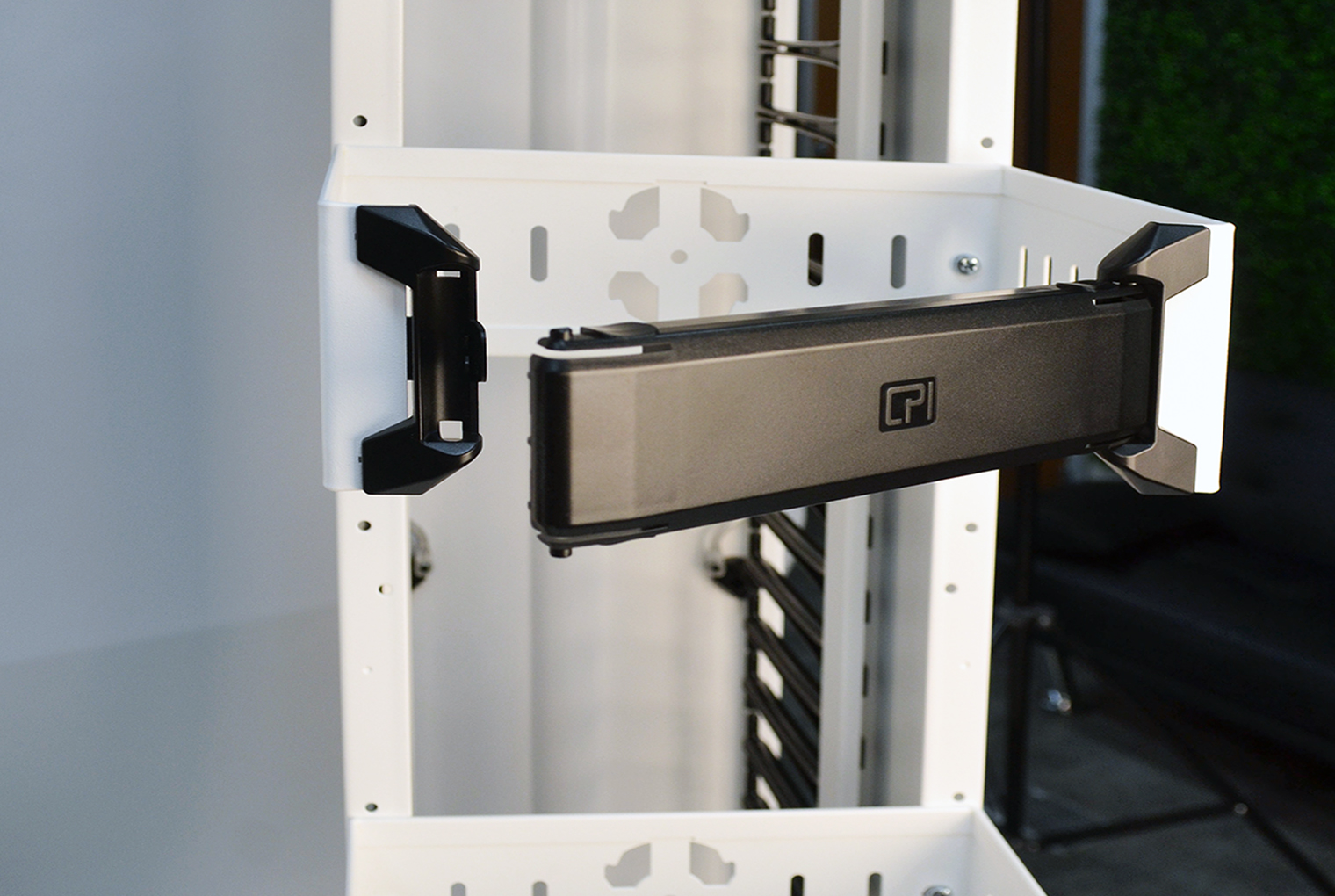

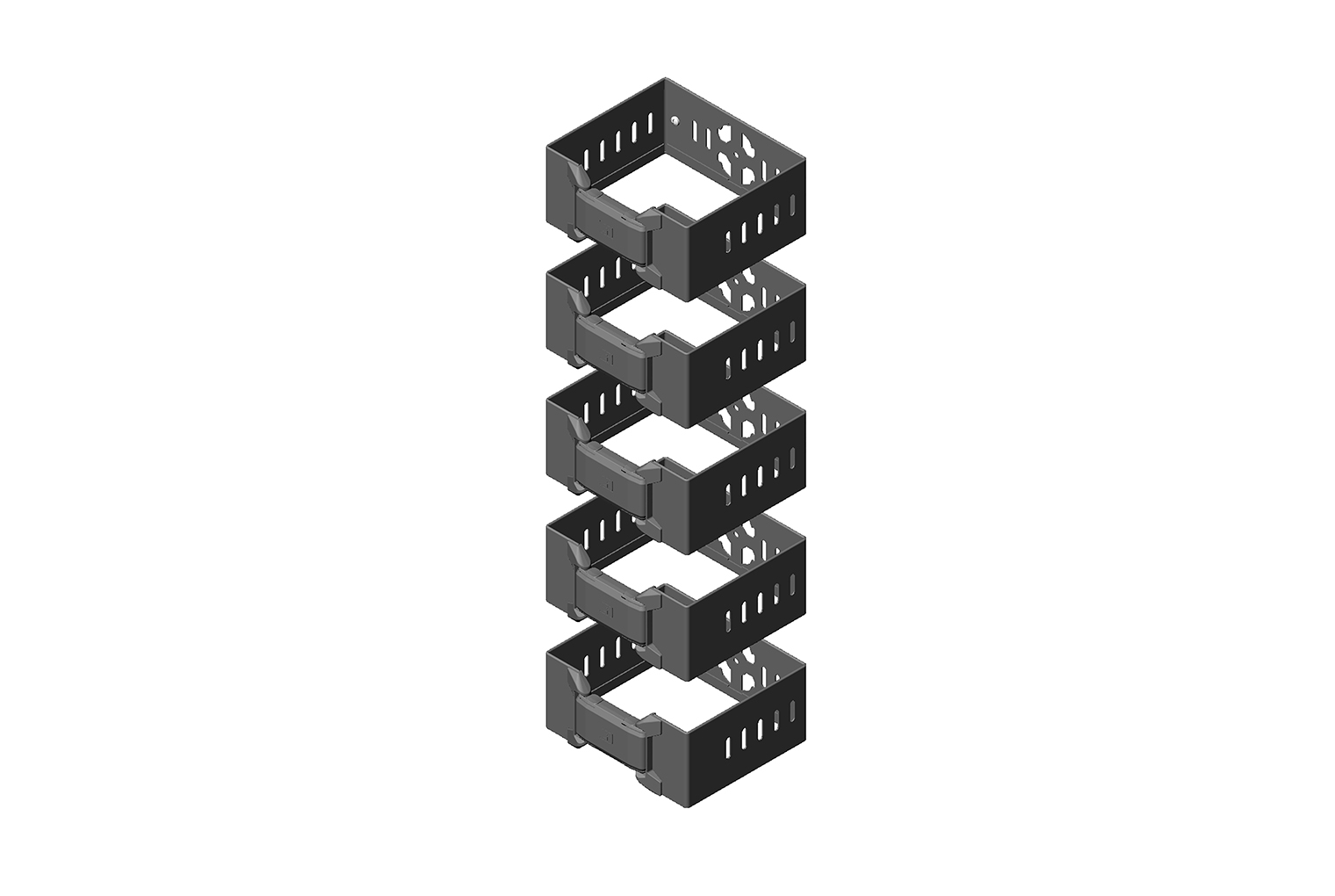

The Cable Ring Kit is designed for the Evolution® Single-Sided Vertical Cable Manager. Creates a separate cable pathway for premise cables at the back of the Cable Manager.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.

This kit manages airflow from the front to rear sections of the cable manager, for Hot/Cold aisle containment applications, by utilizing either brushes or grommets for cable pass-thru.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.

This kit manages airflow from the front to rear sections of the cable manager, for Hot/Cold aisle containment applications, by utilizing either brushes or grommets for cable pass-thru.

Legacy Accessories Compatibility: For all Evolution® Vertical Cable Managers ordered prior to January 29, 2024, only legacy accessories are compatible. We strongly advise customers who have purchased these units before this date to procure and use legacy accessories for optimal performance and fit.
