Cable Runway

CPI's Cable Runway supports backbone and horizontal cables between the point of entry and exit into the telecommunications or equipment rooms, and cross-connects on racks or cabinets with other CPI Cable Runway Products. CPI UL Classified Cable Runway is classified by Underwriters Laboratories for sustainability (as an equipment grounding conductor only). The side stringers are 1 1/2' x 3/8' x .065' (38.1 mm x 9.53 mm x 1.65 mm) and the cross members are 1/2' x 1' x .065' (12.7 mm x 30 mm x 1.65 mm) welded at 9' (230 mm) intervals. Individually boxed to prevent scratching and damage.

Our most popular cable runway is designed for value conscious customers. The Universal Cable Runway offers the industry standard features you’ve come to expect. With the runway supported every 5’ (1.5 m), maximum load with minimal deflection is 132 lb/ft (59.9 kg).

Adjustable Cable Runway is designed to provide a flexible point-to-point solution anywhere cables enter or exit the cable pathway.

Similar in construction to our UL Classified Cable Runway (Series 11275). The side stringers are 1 1/2" x 3/8" x .065" and the cross members are 1/2" x 1" x .065" welded at 9" intervals. The overall length is 9' 8-1/2" to comply with TELCO-Style standards.

Bracket provides a separate facility for running power conductors or other cables that should be physically separated from main cables. Made of 1/8" x 1" (3.18 mm x 30 mm) steel; gold finish/color over zinc plating.

Used to attach threaded rod to ceiling. Hardware is not included.

Cable Runway Mounting Bracket for 6" (150 mm) to 24" (600 mm) Wide Runway secured onto Adjustable QuadraRack® (AQR) or Adjustable ServerRack.

The CPI Cable Runway Wall To Rack Kit is a one part number solution to the problem of providing support for cable between the rack and the wall.

Kit consists of:

• 54" (4' 6") long Universal Cable Runway
• Wall Angle Support Bracket
• Rack to Runway Mounting Plate
• Pair of End Caps
• (6) zinc plated, gold chem finish J-bolts

Use J-Bolt to attach Cable Runway to Wall Angle Support or Wall Support Bracket.

Creates a radius for L, T, or X-shaped intersections of Cable Runway formed when two or more pieces of Cable Runway are connected together with the Junction-Splice Kit or Heavy-Duty Junction-Splice Kit.

Designed to butt-splice 1-1/2" (38.1 mm) Cable Runway at a 90º angle.

Kit consist of:

• (2) 90º outside clamps
• (2) Inside edge clamps
• (2) 3/8-16 trimmed round head, square neck bolts
• (2) 3/8-16 hex nuts and lock washers

Provides extra cable depth to existing 1-1/2" (38 mm) cable runway installation. Mounts onto Cable Runway side stringers.

Mounts to the side stringer of CPI Cable Runway to help maintain proper Category 5e/6/6a or fiber bend radius.

The 4'6" (1359 mm) length of this cable runway is designed to meet UPS requirements without additional charges. Packaged one kit per box.

Kit consist of:

• (2) 4'6"/53.5" (1359 mm) cable runway; combined length is 8' 11 3/8" L/107.38" (2727.5mm)
• (1) Butt Splice Kit

A single 104.75"L (2660.7mm) space will transition a row of four 19" Racks (CPI Series 55053, 46353, 66353) and five 6"W (150 mm) Vertical Cabling Sections (CPI Series 11729).

The PatchRack is a miniature two-post rack that be attached to CPI Cable Runway to save rack-mount space by placing patch panels or interconnect equipment above the rack or cabinet. Use PatchRack to create a zone network in the data center.

Attaches to all CPI Cable Runway, but optimized for 1-1/2" H x 3/8" W (38.1 mm x 9.53 mm) side stringers or cross members to Universal Cable Runway

The D-Ring Kit provides cable management for PatchRack.

• 4U Kit includes 6 Rings
• 8U Kit includes 10 Rings

CPI's patent-pending Tool-less Stringer Radius Drop features simple, tool-less installation.

CPI’s patent-pending Tool-less Cross Member Radius Drop supports and guides cable loads as they enter and exit the runway, allowing cables to maintain proper bend radius. The Tool-less Cross Member Radius Drop is designed for compatibility with 1.5” x 3/8” (38.1 mm x 9.53 mm) Stringers and installs without the need for tools, mounting directly to the sides of the runway.

Mounts to the cross member of CPI Cable Runway to help maintain proper Category 5e/6/6a or fiber bend radius.

Permits the dropping of cables at any point between cross members of 9", 12" or 18"W (230 mm, 300 mm or 460 mm) Cable Runways. Combine with the recommended Cable Runway Radius Drop.

CPI's patent-pending Tool-less Pathway Dividers divide cable runway into multiple pathways to organize cables by media type or destination - a solution that enables technicians to better manage moves, adds and changes. Hinged design opens up to wrap around cross members and features CPI's Click Secure Technology.

Pathway Dividers divide Cable Runway into multiple cable pathways in order to organize cables according to media type or destination. By organizing horizontal cables by destination according to route or zone, technicians can better manage cables when additional cables are added or when the cable path through the building changes due to building renovations.

Creates a gradual bend for cascading cable runs.

Creates a gradual bend in horizontal cascading cable runs and a gradual sweep in horizontal planes of Cable Runway runs. Designed for cabling in conformance with the minimum bend radius requirements (typically 4 times the cable diameter). Made of lightweight 1-1/2" x 3/8" (39.1mm x 9.53 mm) tubular steel to fit a standard Cable Runway.

Connect two sections of runway end-to-end. Fits both solid and tubular steel 1-1/2" x 3/8" and 2" x 3/8" (38.1 mm x 9.53 mm and 50.8 x 9.53 mm).

Kit consists of:

• (4) slice plates
• (2) 3/8-16 trimmed head bolts
• (2) 3/8-16 hex nuts
• (2) 3/8" split lock washers

For butting two lengths of Runway together. Cable Runway drilling is required. For use in earthquake area.

Kit consists of:

• (4) slice plates for 1-1/2" stringers
• (4) 3/8-16 x 1-1/4" hex cap screws
• (4) 3/8-16 hex nuts
• (4) 3/8" split lock washers

Used to create a 90º junction splice with all types of 1-1/2" x 3/8" (38.1 mm x 9.53 mm) or 2" x 3/8" (50.8 mm x 9.53 mm) Cable Runway.

Kit consists of:

• (4) corner clamp plates
• (2) 3/8-16 x 1-3/8" trimmed head bolts
• (2) 3/8-16 hex nuts
• (2) 3/8 split lock washers

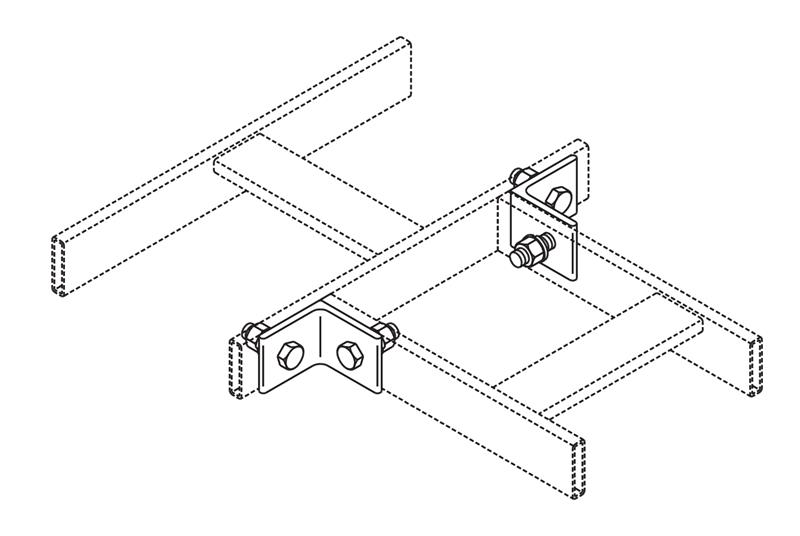

Bolt-through Junction-Splice Kit for vertical runs or to meet seismic requirements. Cable Runway drilling is required.

Kit consist of:

• (2) splice angles
• (4) 3/8-16 x 1-1/4" hex cap screws
• (4) 3/8-16 hex nuts
• (4) 3/8 split lock washers

Butt-splice Cable Runway at a 45º angle.

Adjust to form any junction angle for cabling that requires a large radius bend or to route around existing plumbing, electrical, ect.

Splice cable runway vertically, horizontally or perpendicularly. Adjust to any angle, not limited to 45º or 90º. Flexible swivel design simplifies Cable Runway installation by making it easier to route around existing plumbing, electrical, ect. Material is steel. Hardware and instructions are included.

Secures cable runway to the top of Standard and Universal equipment racks. J-Bolts hook under the mounting plate to secure the plate to the rack's top angle. Mounts either parallel or perpendicular. For proper attachment of 6"W (150 mm) Cable Runway, use top bars (13045 Series) rather than top angles on the rack.

Secures Runway to the top of Universal Rack without intruding into mounting space. The combination of the flat plate and hat-shaped bracket form a clamp around the rack's top angles or top bars. Mounts parallel or perpendicular. For proper attachment on 6" runway, use top bars (13045 Series) rather than top angles. Installation Best Practices include Runway Elevation Kit (P.N 10506)

• Secures Cable Runway to the top of 6”D (150 mm) Standard Rack. Mounts either parallel or perpendicular to runway.
• Installation Best Practices include Runway Elevation Kit (P/N 10506-XXX)
• P/N 12121-XXX consists of:
• (1) mounting plate
• (4) 5/16-18 x 2 1/4” J-bolts
• (4) 5/16-18 hex nuts
• (4) 5/16 split lock washers
•  P/N 12409-X24 consists of:
• (1) mounting plate
• (2) 5/16-18 x 3 1/4” J-bolts
• (2) 5/16-18 x 2 1/4” J-bolts
• (4) 5/16-18 hex nuts
• (4) 5/16 split lock washers

Secures Runway to the top of Universal Rack without intruding into mounting space. The combination of the flat plate and hat-shaped bracket form a clamp around the rack's top angles or top bars. Mounts parallel or perpendicular. For proper attachment on 6" runway, use top bars (13045 Series) rather than top angles. Installation Best Practices include Runway Elevation Kit (P.N 10506)

Kit consist of:

• (1) mounting plate
• (2) hat-shaped brackets
• (2) J-Bolts, 5/16-18 x 2-1/4"
• (3) hex nuts, 5/16-18
• (3) split lock washers, 5/16"

Triangular Support Bracket provides wall support for cable runway. Made of cold-rolled steel. Load rating 400 lb (181.4 kg).

2" x 2" x .105" (50 mm x 50 mm x 2.67 mm) steel support angle is designed for wall-mounting specific widths of Cable Runway.

Kit consists of:

• (1) wall angle
• (2) 5/16-18 x 2-1/4" J-bolts
• (2) 5/16-18 hex nuts
• (2) 5/16 lock washers

To attach and secure Cable Runway to a wall or floor. Foot made of 3/8" x 1-1/2" x 6"H steel

Used to secure Cable Runway with 1-1/2" x 3/8" (38 mm x 9.53 mm) stringers to a wall. Sold in pairs.

Use for floor support for cable runway grids.

Adjustable Cable Runway Cross Member Kit are accessory kits that allow sub-components to be inventoried in compact packages.

• Cross Member Kit - 10 Pack. Use with two Runway Stringers to create one length (stick) of runway
• Cross Member Kit - 50 Pack. Use with 10 Runway Stringers to create five sticks of runway
• Cross Members are aluminum
• Each Cross Member includes (2) M8 x 20, Taptite thread-forming hexalobular (TORX) screws for each Cross Member

Adjustable Cable Runway Stringers are available separately. Accessory kits allow sub-components to be inventoried in compact packages.

Secures threaded rod to Cable Runway.

Kit consists of :

• (1) slotted support bracket
• (2) hex nuts
• (2) split lock washers

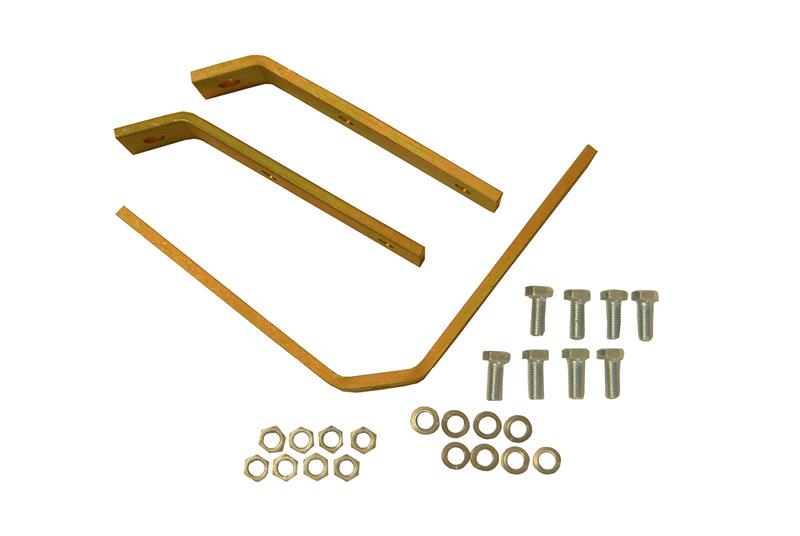

Support kits used to brace pathway products and meet earthquake safety codes.

Provides easy additions of Cable Runway layers to existing cable racks by allowing support brackets and nuts to slip over drop rod. For use with 5/8" (16 mm) threaded rod only. Finish is gold over zinc plating.

Allows the attachment of cable runway 12" (300 mm) directly above and either parallel or perpendicular to existing Cable Runway.

Kit Includes:

• (2) steel angle pieces
• (4) steel brackets
• (8) Sets of nuts, bolts, and washers
• Angle pieces available in Gray, Computer Beige, Black or Gold finish

Kit Includes:

• (2) steel angle pieces
• (4) steel brackets
• (8) Sets of nuts, bolts, and washers
• Angle pieces available in Gray, Computer Beige, Black or Gold finish

Used to suspend Cable Runway from the ceiling. Material is steel, finished with gold over zinc plating.

Supports Cable Runway above a continuous row of CPI Racks or Cabinets of varying heights and provides additional space between the tops and the cable runway and trays.

10506 Series - Supports One Tier of Pathway:

• Three ranges of incremental elevation
• Can be mounted perpendicular or parallel
• Rack kit includes a single pair of brackets and assembly hardware
• Rack kits attach to the top of the rack with a Rack-To-Runway Mounting Plate (P/N 10595 or 12121, sold separately)
• Cabinet kits include two pairs of brackets and assembly hardware
• Cabinet kits attach directly to the top of the cabinets
• Compatible with Adjustable Cable Runway

60507 Series - Supports Two Tiers of Pathway:

• Two Tier version supports two levels of cable runway or wire mesh cable tray
• Recommended pathway support span is 5' (1.5 m).
• Attaches to top track of Cabinet/Rack frame. Position pathway front-to-rear on track
• Kit includes (1) pair of elevation brackets, all hardware to attach the brackets to the cabinet, and all required hardware to attach Cable Runway to elevation brackets

Triangular Support Bracket provides wall support for Cable Runway. Made of 1/4" x 2" (6.4 mm x 50 mm) aluminum bar. Load rating is 100 lb (45.4 kg).

Used to close an unspliced end of Cable Runway. Made of 3/8" x 1-1/2" x .065" (9.53 mm x 38 mm x 1.65 mm) thick rectangular steel tubing.

Secures threaded rod to Cable Runway. Mounting hardware not included.

This kit has been designed to make installation of cable runway in the ceiling even easier by using just a single point of attachment. The center attachment design not only makes installation easy, but also provides quick and simple cable routing with no need to thread the cable between the runway supports. The support kit securely attaches to the cable runway stringer, eliminating possible dislocations.

Covers and protects exposed ends of cable runway and auxiliary framing bar and channel. Reduces chances of personal injury and equipment damage.

Supports CPI Cable Runway or Wire Mesh Cable Tray above a continuous row of ZetaFrame Cabinet, providing additional space between the tops of the cabinets and the cable runway and trays.

• Three ranges of incremental elevation
• Two Tier version supports two levels of cable runway or wire mesh cable tray
• Recommended pathway support span is 5' (1.5 m)
• Attaches to top track of ZetaFrame Cabinet frame. Position pathway front-to-rear on track
• Kit includes (1) pair of elevation brackets, all hardware to attach the brackets to the cabinet, and all required hardware to attach Cable Runway to elevation brackets
• Use Part Clamp (P/N 64010060-050; ordered separately) to attach Pemsa Rejiband Wire Mesh Cable Tray

Creates a rigid connection between two adjacent grid or cable runway sections. Material is steel finished with gold over zinc plating. Kit includes 2 brackets.

Used to butt-splice either 9/16" x 2" or 1" x 2" Auxiliary Framing Channel.

Kit consists of :

• (2) splice plates (no drilling required)
• (1) 3/8-16 hex cap screw
• (1) 3/8-16 hex nut and split lock washers
