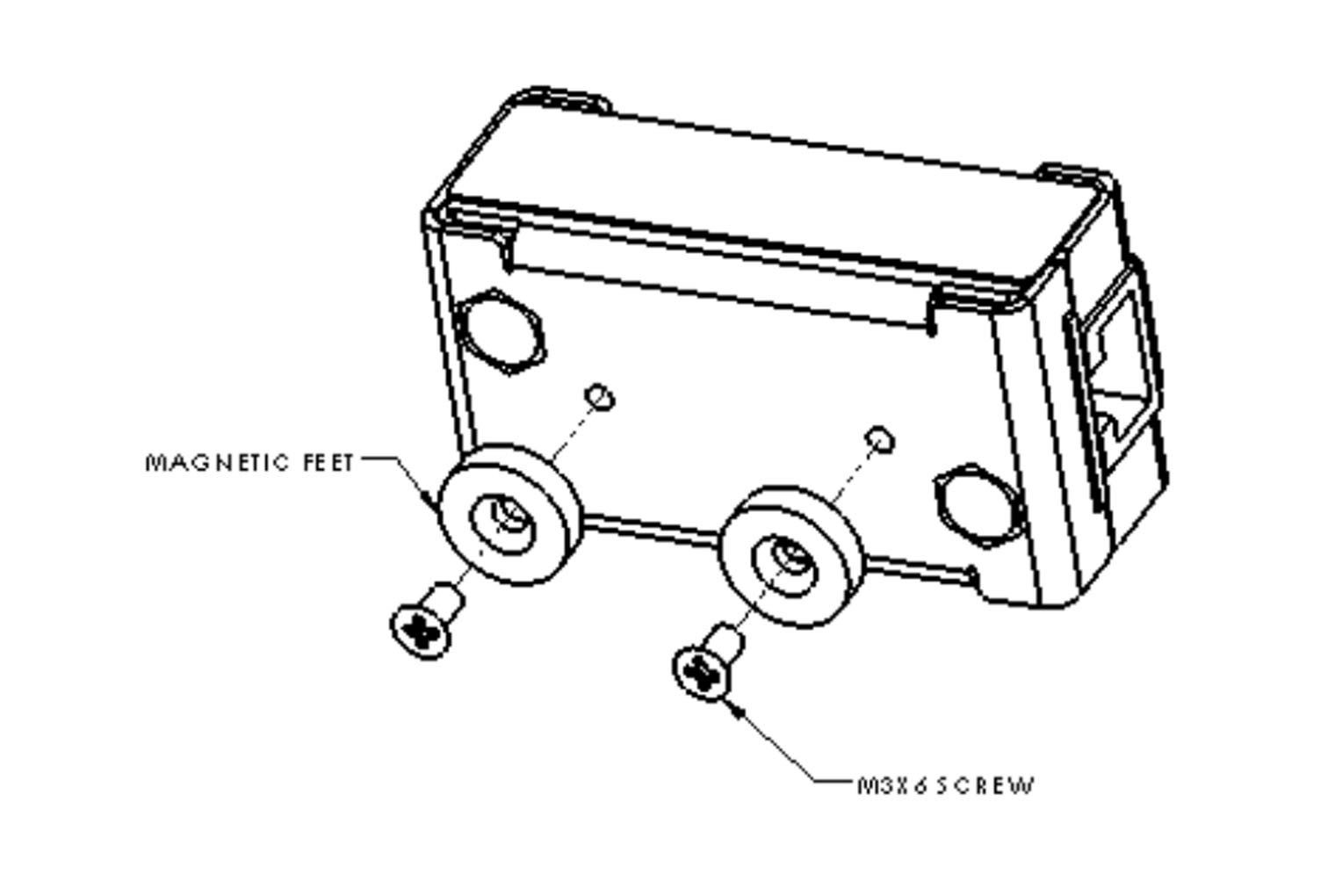

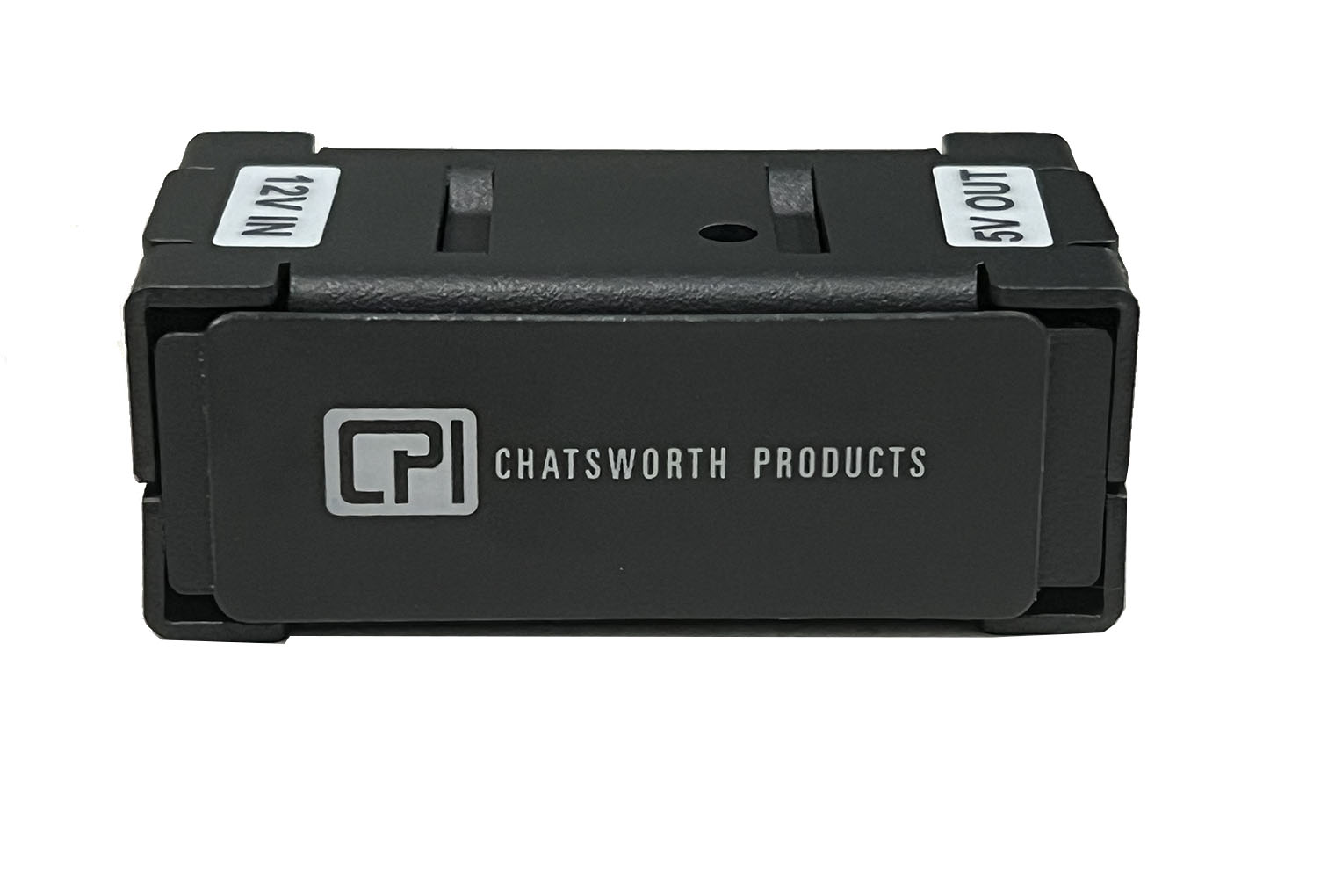

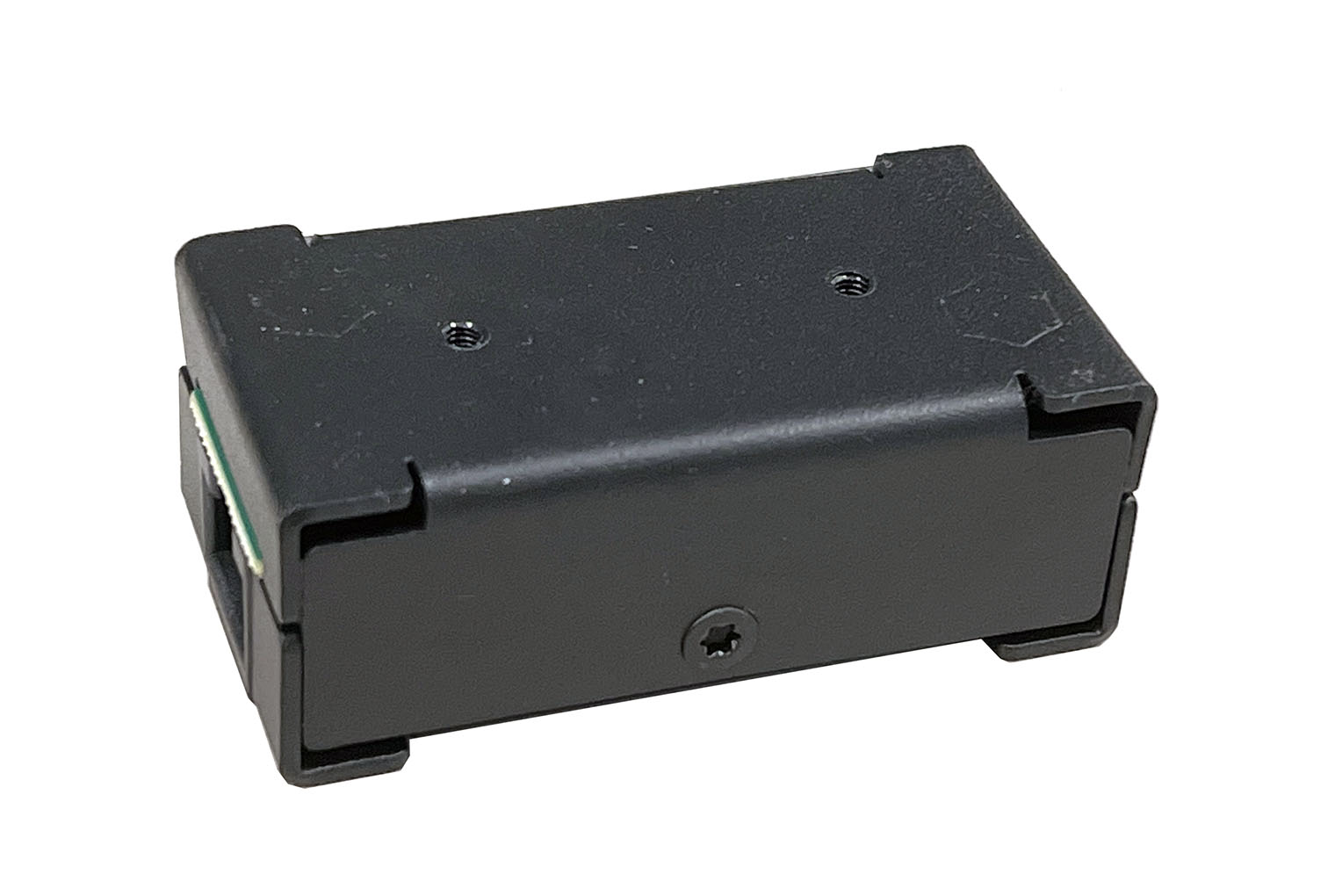

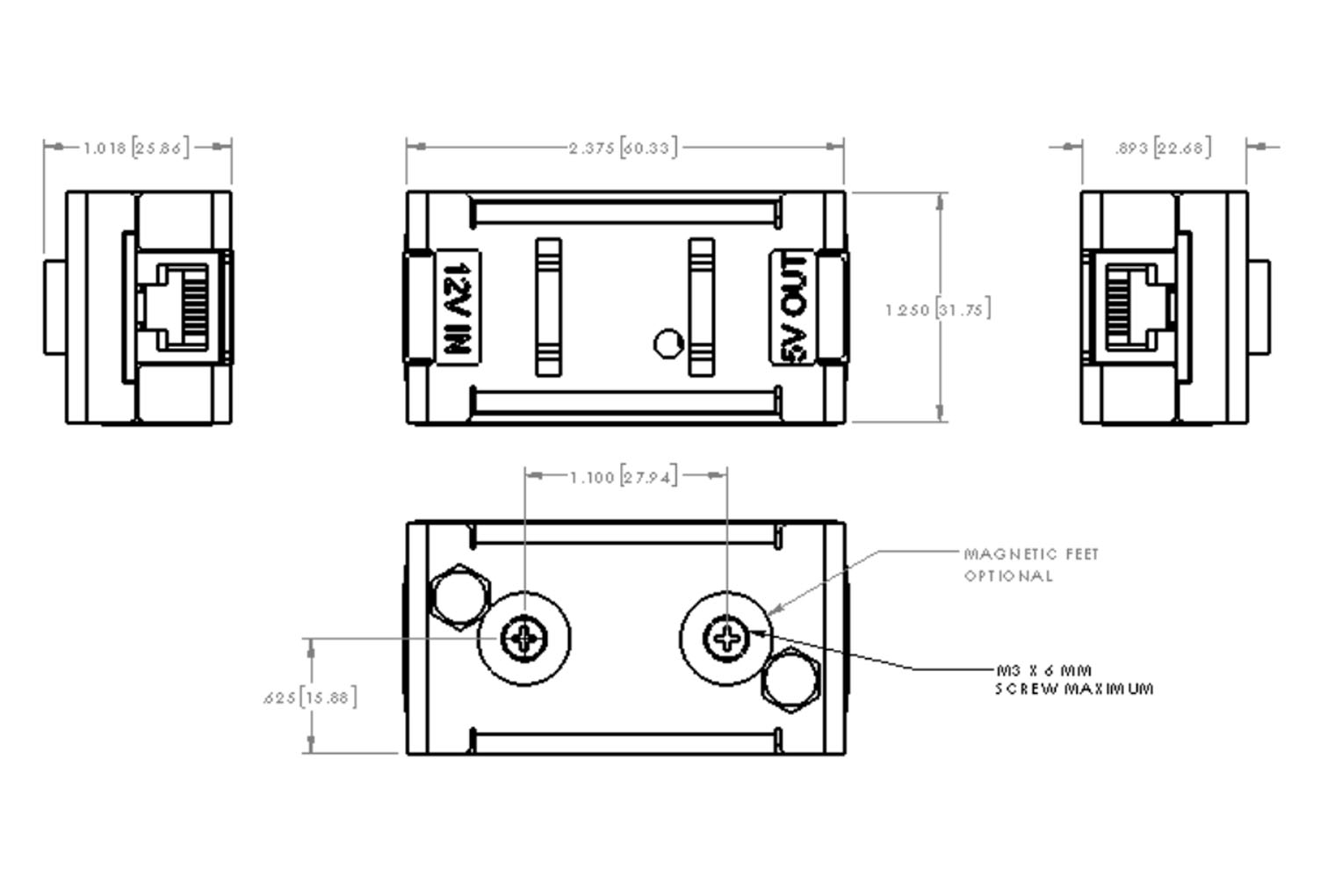

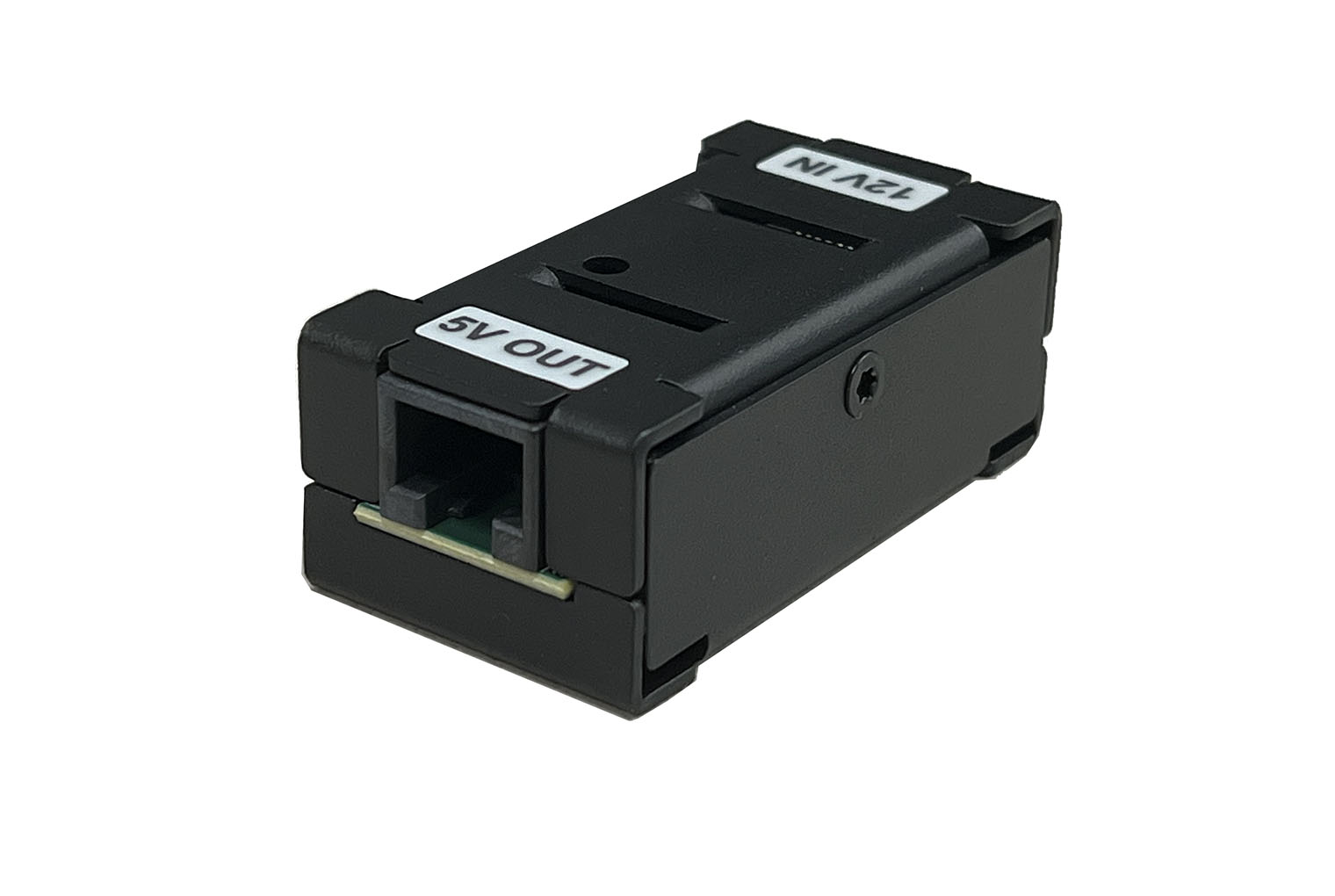

The 12V to 5V Electronic Lock Adapter Kit connects an eConnect controller module 4 with a 5V Electronic Lock Set (P/N 36650-001). This accessory is ideal if transitioning from a previous eConnect controller module 3 PDU or older to an eConnect controller module 4 PDU while using 5V Electronic Lock Sets.
Height, Width, Depth, Color
Use eConnect EAC Wire Harness Kit as a spare if you need to connect the EAC with eConnect PDUs.
RIM-1000 includes brackets for rack-mounting the device into a 19”EIA rack or cabinet, but wall-mount brackets are also available if you wish to hang the RIM-1000 on a wall.

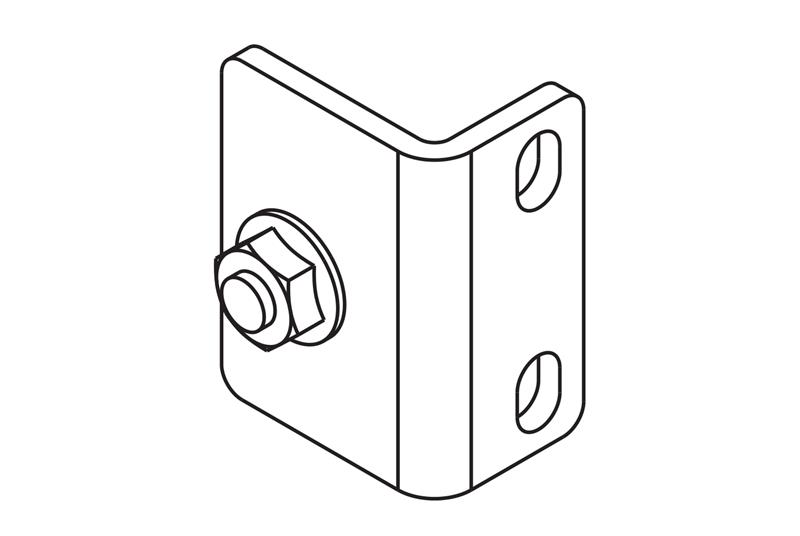

Adding power to a cabinet, CPI’s QuadraRack or any other EIA standard rack product is a breeze. The Universal Cabinet/QuadraRack Vertical Power Strip Bracket enhances the flexibility of the Versa-clamp.
Volts, Plug, Phase, Outlets, Breakers, Input Current
Measures environmental temperature and humidity values when attached to the eConnect PDU or Network Controller Module USB port. Configure environmental thresholds and remotely monitor temperature/humidity levels to ensure seamless system performance.
Rack-mount step down Transformer converts 240 VAC or 208 VAC input to 240 VAC, 208 VAC and 120 VAC output to power a mix of equipment.
Input Plug, Output Recptacles
Start-Up Service Onsite review of initial installation and system configuration of the UPS\system. Scheduled visit during standard work week (5x8). Does not include physical installation or electrical connections.
Order one start up service per UPS.
Type

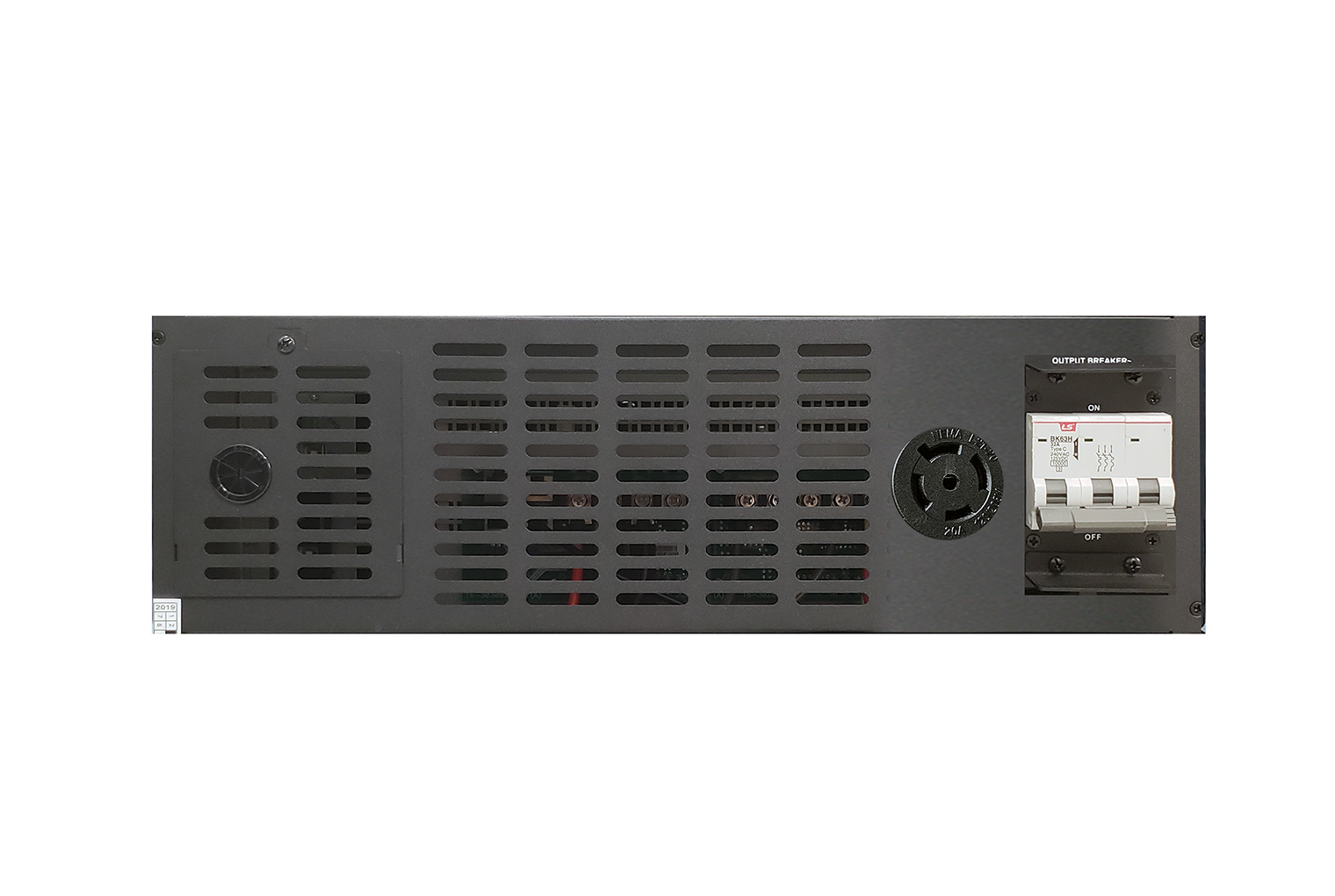

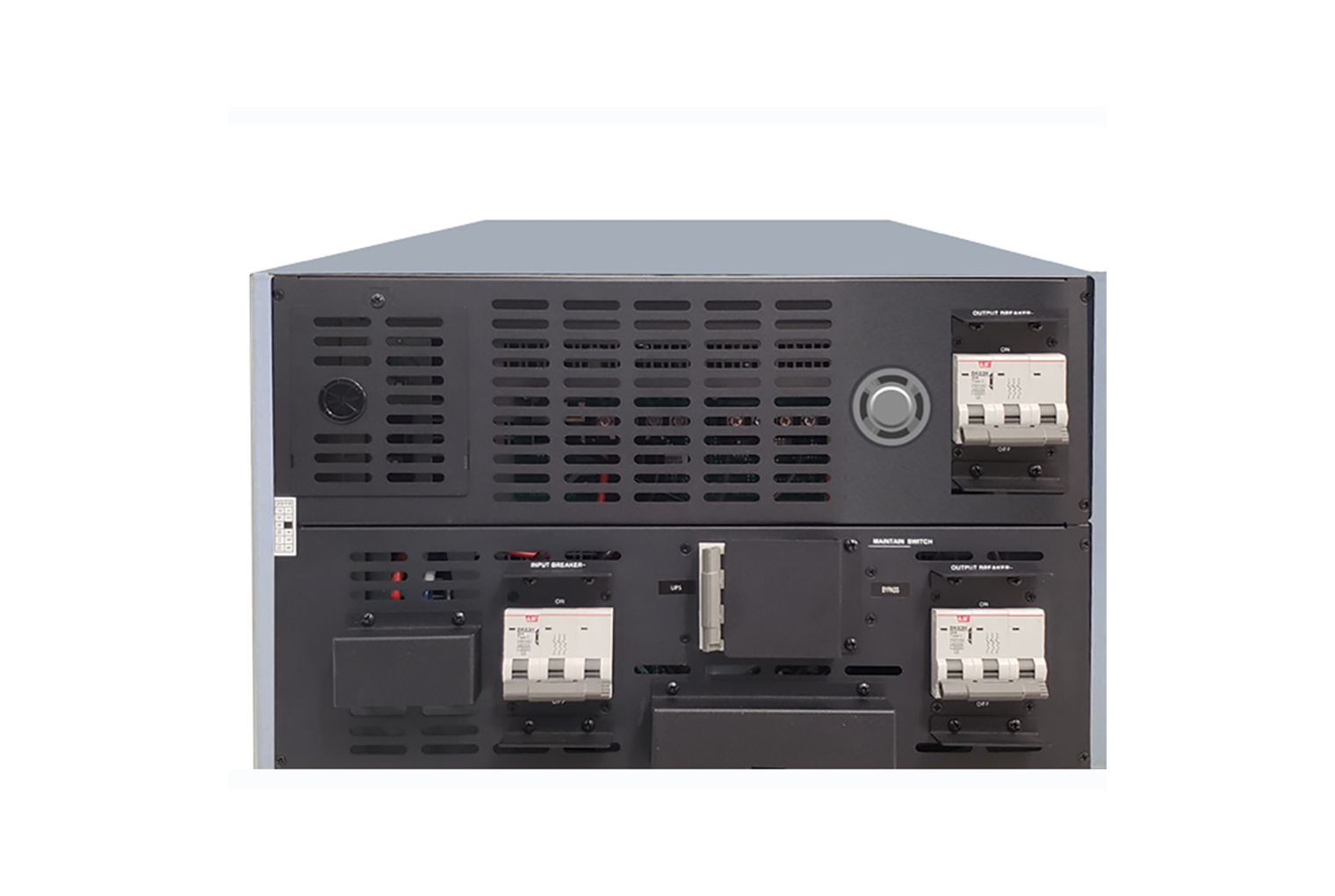

Optional Receptacle panels on the rear of the units reduces installation costs and simplifies plugging in of compatible corded Rack Power distribution units. Included within VD5K3P-1 and VD8K3P-1.
Preventative Maintenance Service Onsite preventative maintenance of UPS and batteries. Scheduled visit during standard work week (5x8). Does not include physical installation or electrical connections
Order one Preventative Maintenance Service per UPS. Covers one visit.
Onsite UPS maintenance service coverage including start-up and corrective maintenance of electronics. Scheduled visit during standard work week (5x8). Does not include physical installation or electrical connections.
Various mounting kit options for UPS, Extended Runtime Battery Packs and Isolation Transformer PDUs
Manually transfer critical load from UPS power to utility power to prevent power interruption when repairing or replacing the UPS. Two styles are available. For 1kVA to 3kVA UPS, a 1U rack-mount module provide surge protection on input power and a toggle switch for easy transition between utility and UPS power. For 5kVA to 10kVA UPS, choose from several modules that attach to the rear of battery packs and provide several higher power output options.
Input Plug, Nominal Input Voltage, Output Receptacles

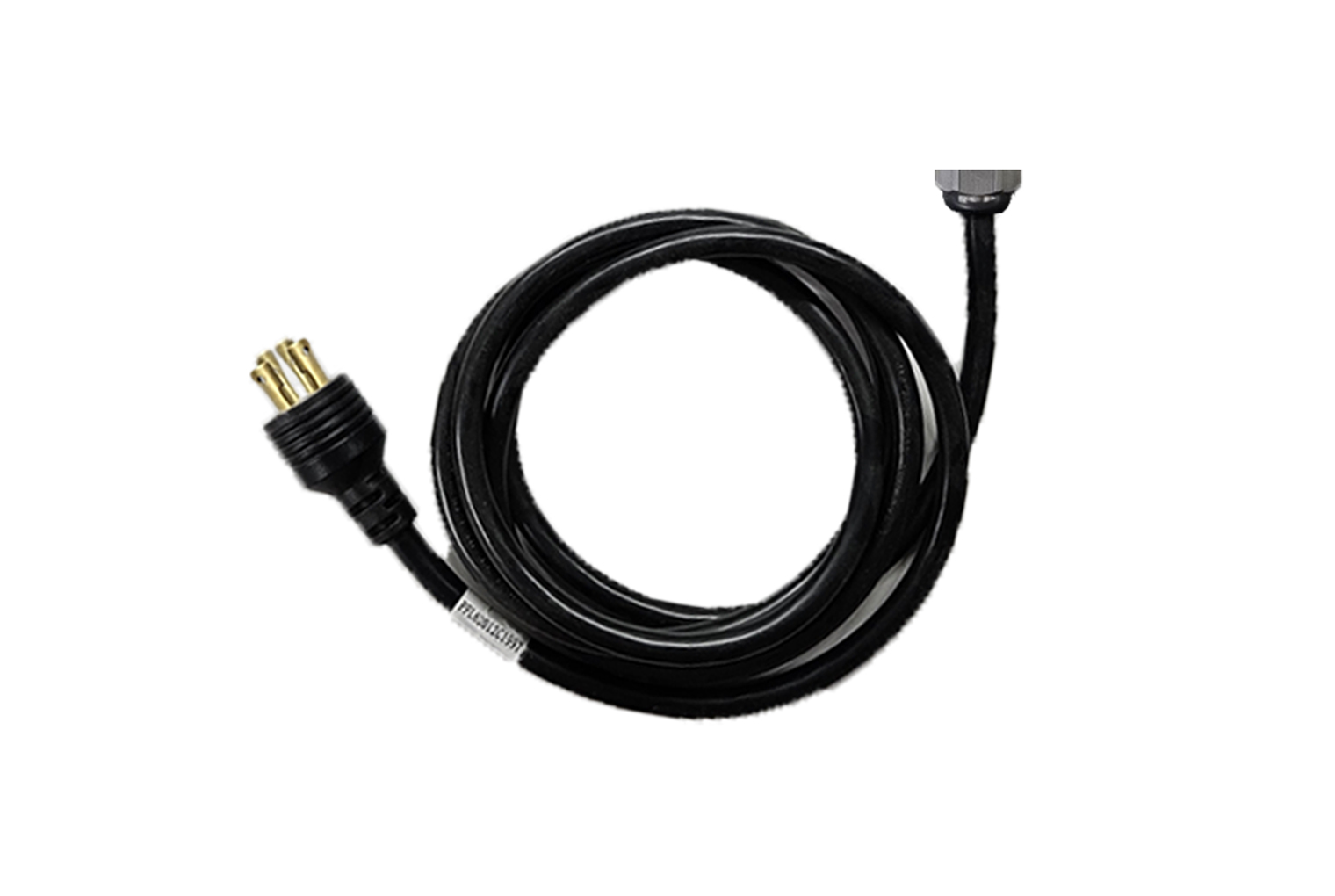

Optional input cords with locking plugs makes the units plug and play. Included within VD5K3P-1 and VD8K3P-1.
Increase the on-battery runtime for UPS systems by adding additional external battery packs to the UPS. Each battery pack matches specific UPS models. Battery Packs use 2U or 3U of rack-mount space and should be placed adjacent to the supported UPS.
Provide remote monitoring, management and control of UPS through a network connection from a web browser.

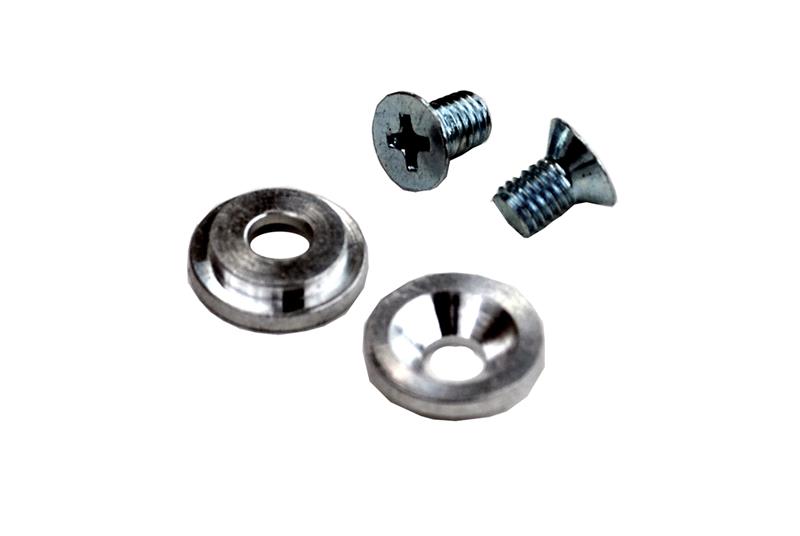

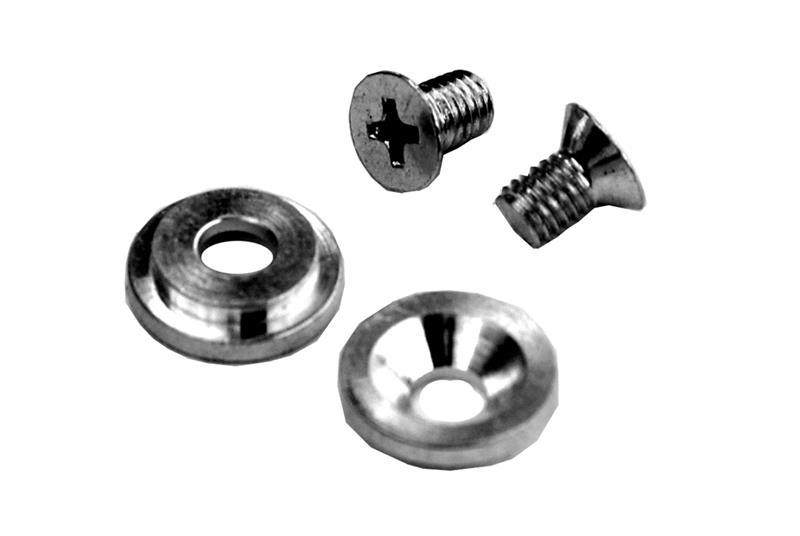

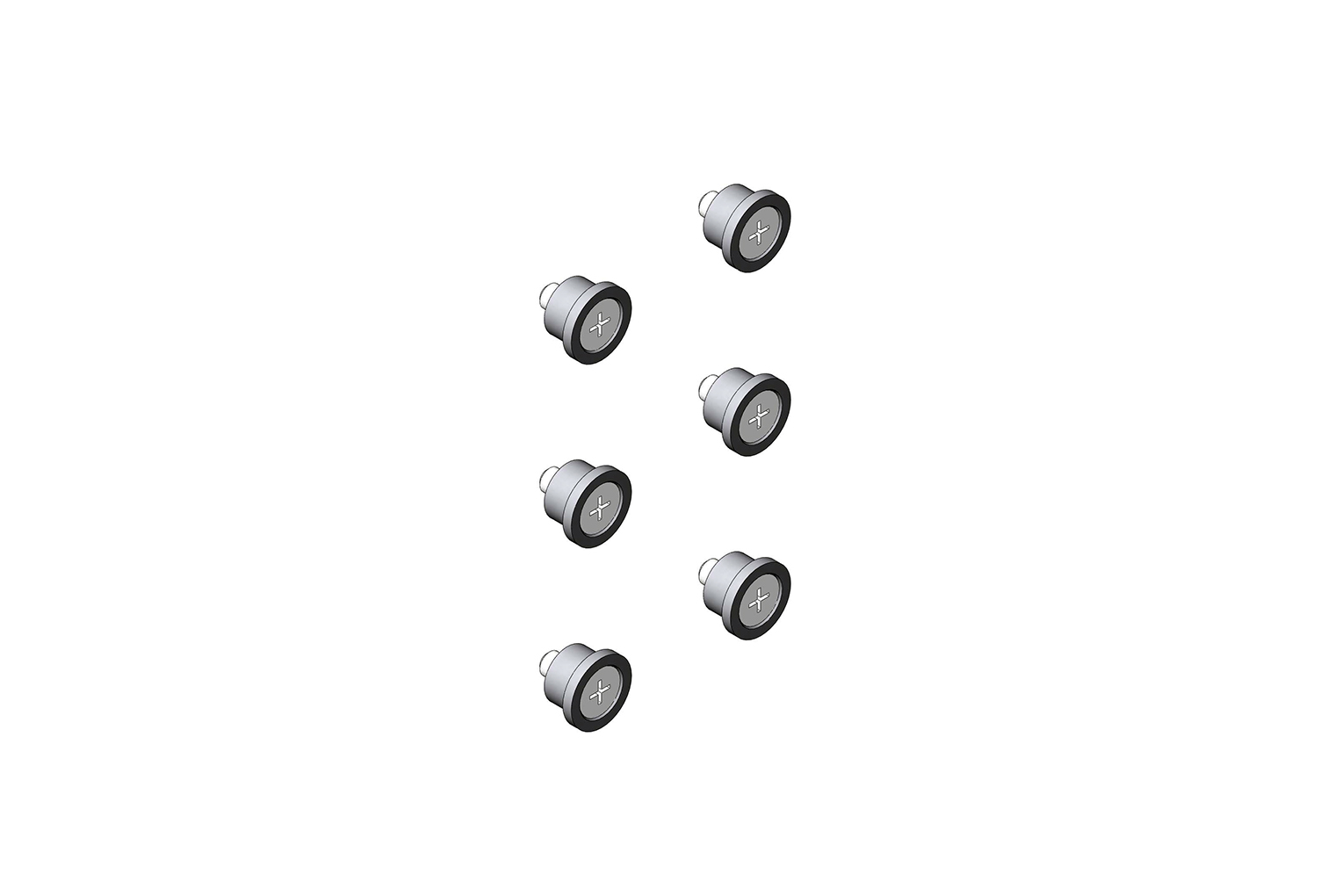

Tool-less Mounting Hardware Kit includes shoulder washers and installation hardware used to mount the PDU on rack and cabinet mounting brackets; mounting brackets are sold separately.
Used to attach PDUs to mounting brackets or power managers. Includes two buttons and screws.
Use the Temperature Sensor to take temperature measurements close to the RIM-750. The Temperature Sensor attaches to one of the four Temperature/Humidity inputs on RIM-750.

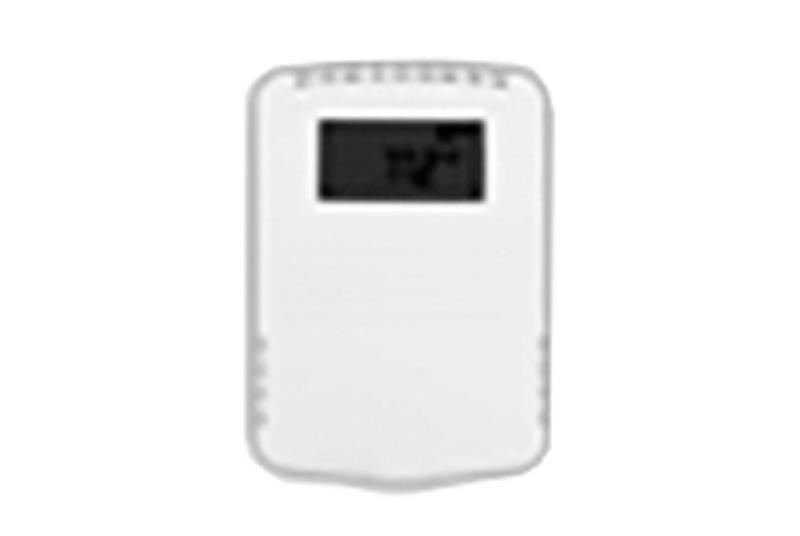

Wall-mount temperature and humidity sensor with 3% accuracy for relative humidity accuracy, a three-digit LCD display, switch selectable temperature monitoring range and switchable relative humidity or dew point measurement. This sensor requires external power from RIM-1000 or an external power supply and attaches to two of the analog inputs on the RIM-1000.
Use the Temperature and Humidity Sensor to take temperature and humidity measurements close to the RIM-750. The Temperature and Humidity Sensor attaches to one of the four Temperature/Humidity inputs on RIM-750.
Wall-mount temperature and humidity sensor with 3% accuracy for relative humidity accuracy, switch selectable temperature monitoring range and switchable relative humidity or dew point measurement. This sensor requires external power from RIM-1000 or an external power supply and attaches to two of the analog inputs on the RIM-1000.
Surface-mount, wired, photoelectric smoke detector with two piece construction that allows pre-wiring of the installation base with plug-in head. The Smoke Detector includes an external power supply and attaches to one of the eight digital inputs on the RIM-750.
Surface-mount, wired, photoelectric smoke detector with two-piece construction that allows pre-wiring of the installation base with plug-in head. Smoke Detector requires external power from RIM-1000 or an external power supply and attaches to one of the digital inputs on the RIM-1000.

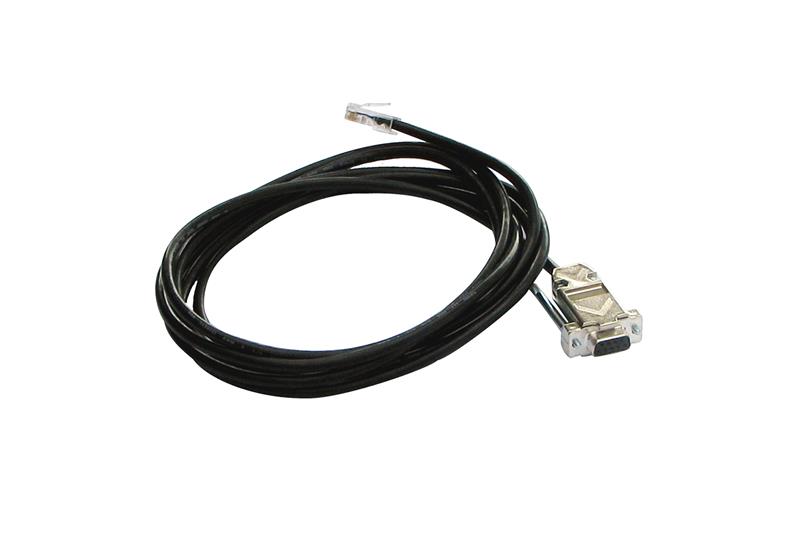

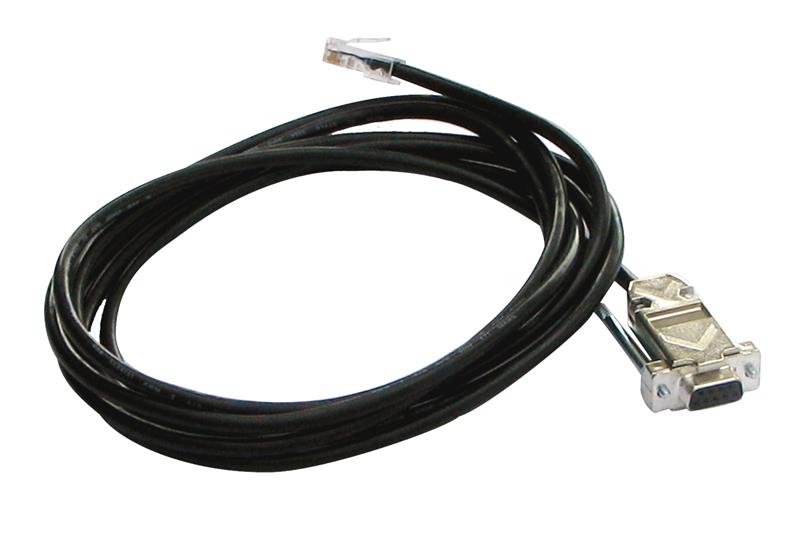

PowerScope and PDU Signal Cable has an RJ-45 to DB9 connection. It allows direct connection of a PowerScope In-Line Meter or a Power Distribution Unit (PDU) to a computer for initial setup using a downloadable serial setup software. This cable is not required with eConnect PDUs.
Use RF IDeas EAC Smart Card Reader for programming eConnect EAC Smart Cards or any other existing smart cards.
Rack-Mount Bracket for RIM-750
Power Fail Monitor plugs into a standard 120 VAC NEMA 5-15 outlet to monitor for power loss. Secures to the outlet to ensure it is not accidentally disconnected and signals power loss through a Form C output relay. Power Fail Monitor attaches to one of the digital inputs on the RIM-1000.
The Motion Detector is a surface-mounted, wired, passive infrared motion detector designed for wall-to-wall coverage across a wide temperature range. When wall-mounted around 10 feet (3 meters) high, Motion Detector covers a cone-shaped area with a maximum span of about 60 feet (18.2 m) and a maximum range of about 50 feet (15.2 meters). The Motion Detector includes an external power supply and attaches to one of the eight digital inputs on the RIM-750.
The Motion Detector is a surface-mounted, wired, passive infrared motion detector designed for wall-to-wall coverage across a wide temperature range. When wall-mounted around 10 feet (3 meters) high, Motion Detector covers a cone-shaped area with a maximum span of about 60 feet (18.2 m) and a maximum range of about 50 feet (15.2 meters). Motion Detector requires external power from RIM-1000 or an external power supply and attaches to one of the digital inputs on the RIM-1000.
The Magnetic Door Sensor is a surface-mounted, wired, magnetic proximity sensor used to detect when a door is opened and closed or when a cover panel is attached or removed. The Magnetic Door Sensor is designed for quick and easy installation as well as a long life (4 million operations). The Magnetic Door Sensor attaches to one of the eight digital inputs on the RIM-750.

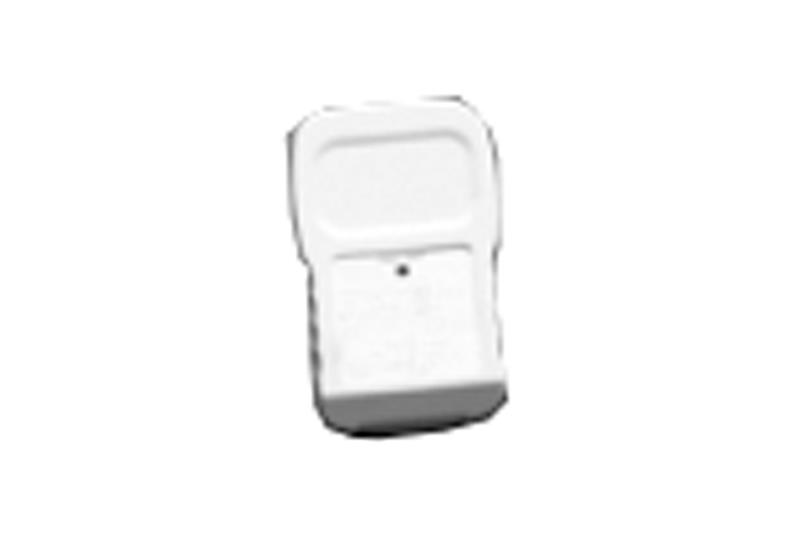

Leak Spot Detector is used to detect liquid in a specific spot, such as, inside of a condensation drip pan. The Spot Detector features a small enclosure with adjustable probes. It can be attached to a flat surface and submerged in water. Leak Spot Detector attaches to one of the eight digital inputs on the RIM-750. You can use up to four Leak Spot Detectors with RIM-750; however, each Leak Spot Detector counts as 50 feet (15.2 meters) of Sensor Rope and will reduce the total length of Leak Detection Sensor Rope supported by the RIM-750 by 50 feet (15.2 meters). For example, you could use two Leak Spot Detectors and 100 feet (30.4 meters) of Leak Detection Sensor Rope.
The Sensor Rope detects the presence of water. The Sensor Rope is constructed of a strong, durable, non-conductive polymer to reduce false alarms, while remaining highly flexible for easy placement around equipment. Sensor Ropes attach to the RIM-750 through the Leak Detection Lead Cable. Sensor Ropes are available in three lengths. Connect Sensor Ropes end-to-end to extend length.
Length
RIM, Leak Detection Controller Kit, 10ft Sensor Rope, J-clips, 5VDC Power Supply, 6'' (152 mm) W x 4'' (102 mm) D x 2.3'' (57 mm) H
Use J-Clips to install Leak Detection Sensor Rope. J-Clips are constructed of durable nylon with an adhesive backing for easy and secure installation.
Quantity
Internal Modem for the RIM-1000, for pager and PPP/dialup connections
RIM-1000 can also be fitted with an internal modem to provide a phone connection to the unit. Every RIM-1000 includes a built-in Ethernet connection. The modem provides a second, alternate method for access and to send alarms.
Input power cords for use with eConnect® PDUs that have IEC C20 inlets.
Volts, Plug, Connector
Ground Wire Kit includes a ground strap and installation hardware to create an external ground connection for the PDU chassis.
Field-replaceable controller module for eConnect® Power Distribution Unit (PDU).
Color, Form Factor, Material
Expansion Cards for the Remote Infrastructure Management (RIM-1000) System
eConnect Electronic Access Control Smart Cards; 13.56 MHz Electronic Access MIFARE Classic cards; Pack of 20

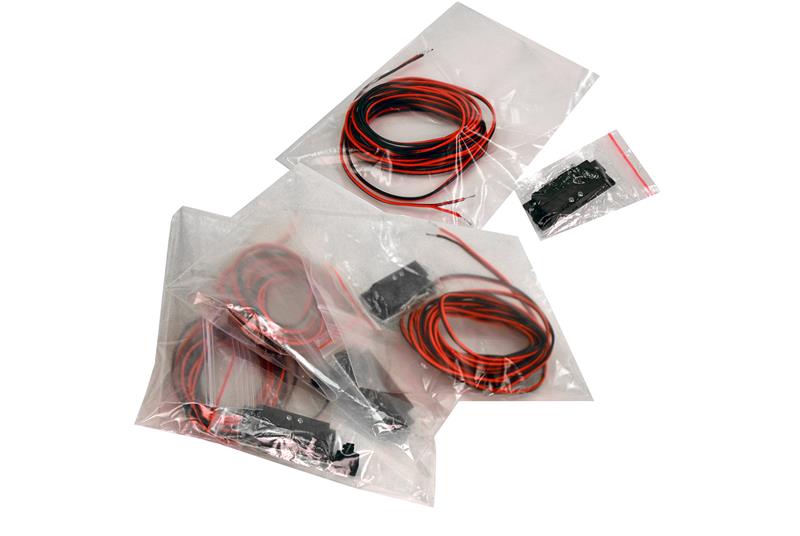

Use eConnect EAC Door Sensor Kit to generate output signals for remote access monitoring.
Door Sensor Kit includes:
Cord Retention Tethers are used with cable ties to secure power cords next to C13 and C19 outlets and to C20 power inlets. The tethers snap onto a small stud next to each outlet/inlet on the PDU. Order cable ties separately.

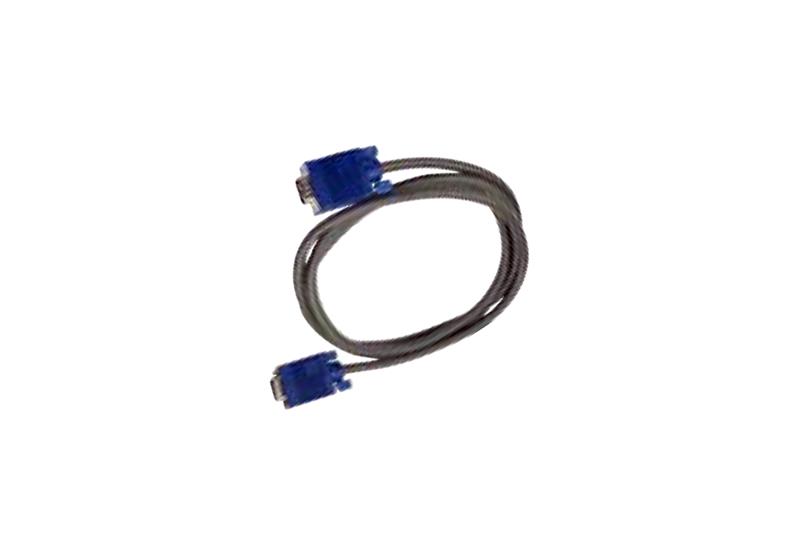

Use the Cascade Cable to connect two switches together for expansion. Computers connected to both switches will be viewed through one set of peripherals. Each Cascade Cable has a combination DB-15 connector on each end.
Use IP KVM Dongles to connect computers to the IP KVM Switch Cat 5/6 ports with Cat 5/6 cables (ordered separately). The dongle has an RJ45 (8P8C) connector for the Cat 5/6 cable from the switch on one end and computer, video, keyboard and mouse connectors on the other end. Select the dongle to match keyboard and video connection: USB or PS/2.
USBPs, Quantity
